6.3 Pin assignments

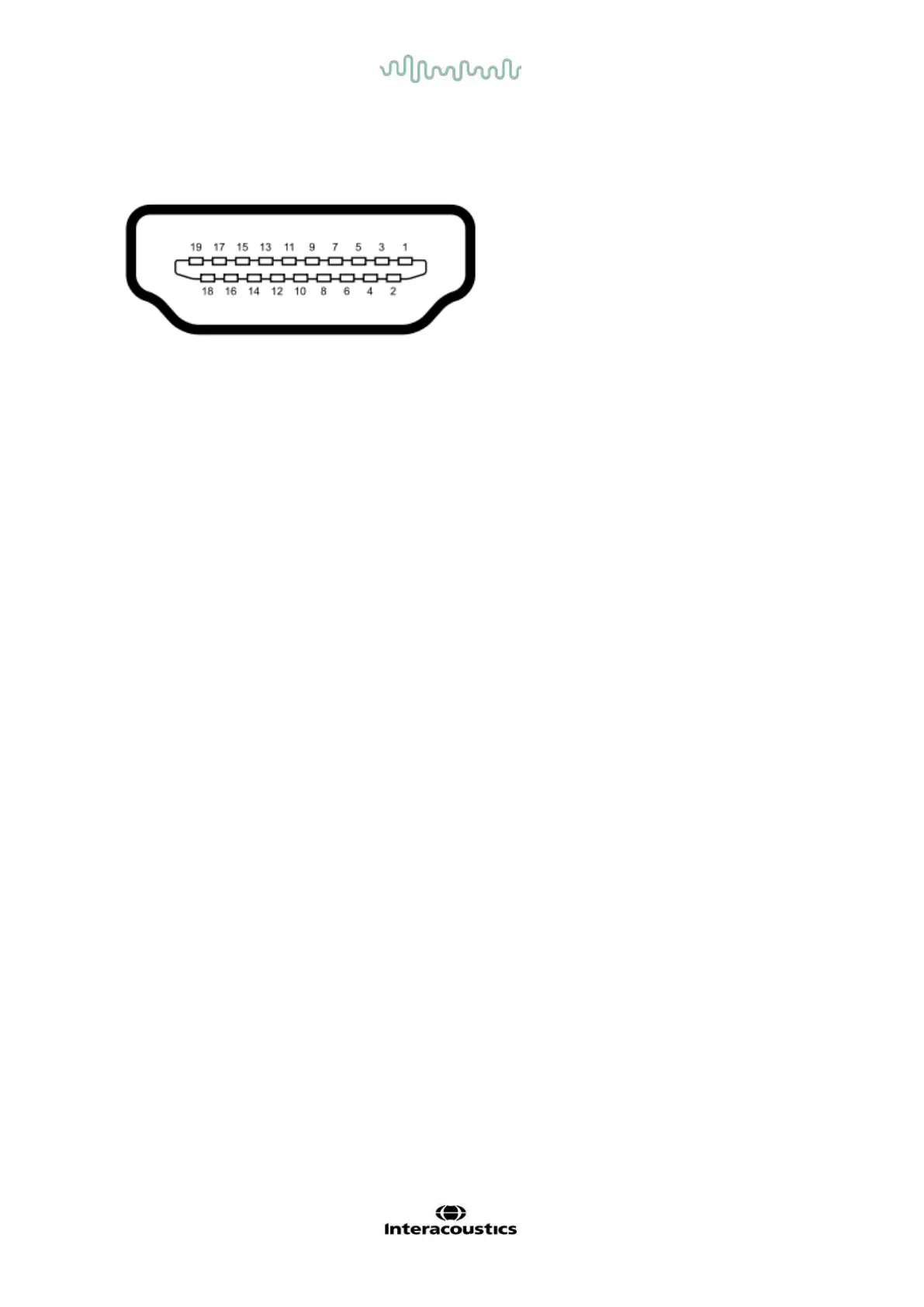

The probe connector pin out:
Type A receptacle HDMI (female)
Pin
1
Rcvr +
Pin
11
Unused
Pin
2
Rcvr Shield
Pin
12
Unused
Pin
3
Rcvr -
Pin
13
Unused
Pin
4
Reserved
Pin
14
Reserved
Pin
5
Shield
Pin
15
Comm Power
Pin
6
Reserved
Pin
16
Comm Data
Pin
7
Mic Power +
Pin
17
Ground
Pin
8
Mic Shield
Pin
18
+3.3V
Pin
9
Mic Out
Pin
19
Ground
Pin
10
Mic Power -
