Connectors, Slots, and Sockets

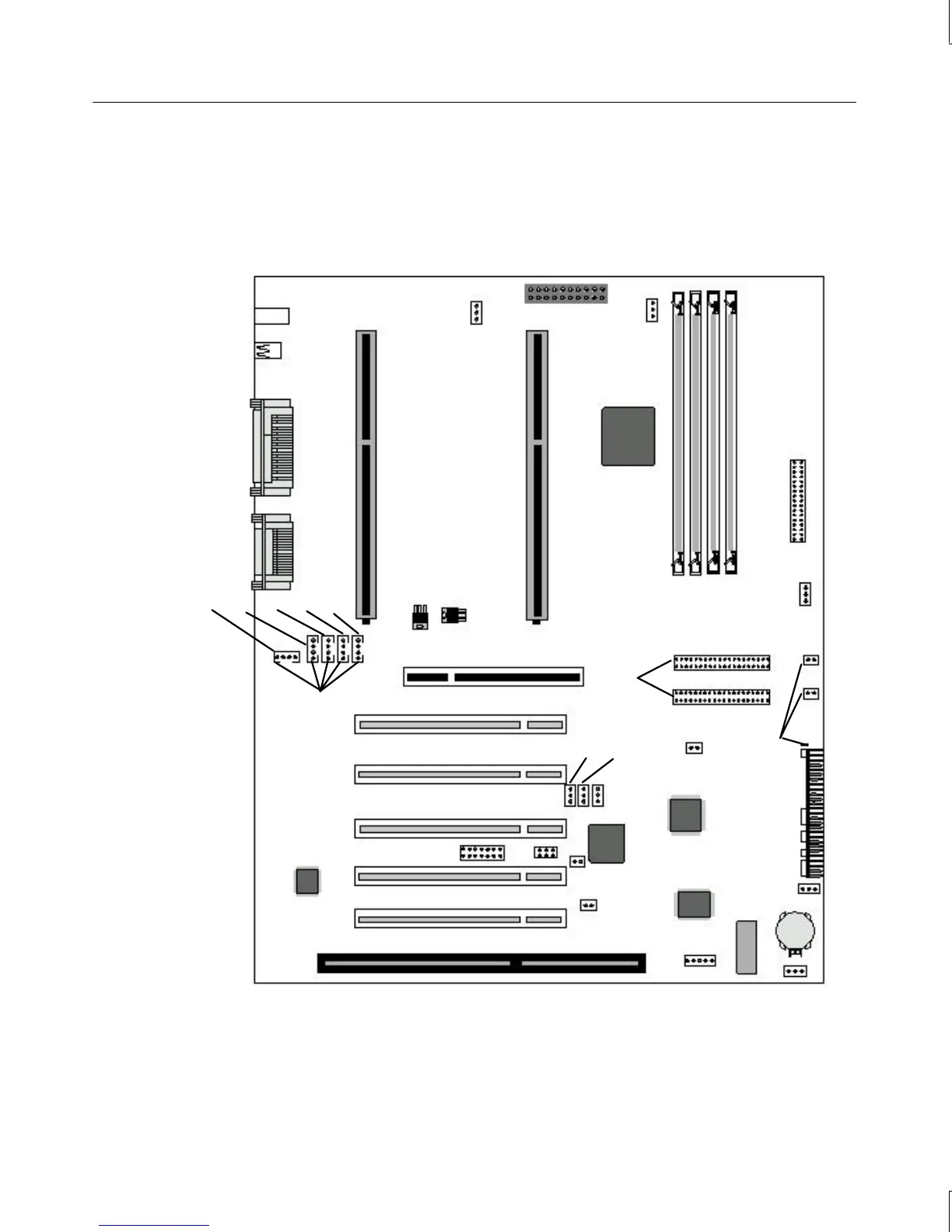

The following figure shows the location of connectors, slots, sockets, and other features on
the system board.
Secondary
processor fan
J31
Primary
processor fan
J30
J27
MIDI/
j
oystick
J39
Parallel
J13
USB J12
W6 W7
W5
W12
W11
J16
J17
J18
J19
J20
J34
J10
J28
IDE J8
IDE J7
W10
Flash BIOS
J33 W9
J21 J22
AGP J1
J23
Battery
W4
HDD LED
Power LED
Speaker
J32
Chassis fan
Banks 0-3
J2-5
Primary
processor
slot U1
Floppy J9
Secondary
processor
slot U2
Mouse/Keyboard
J11
Pin 1
J35 J36 J37 J38 J40
Pin 1
Pin 1
Power
