SCSI CD-Recorder

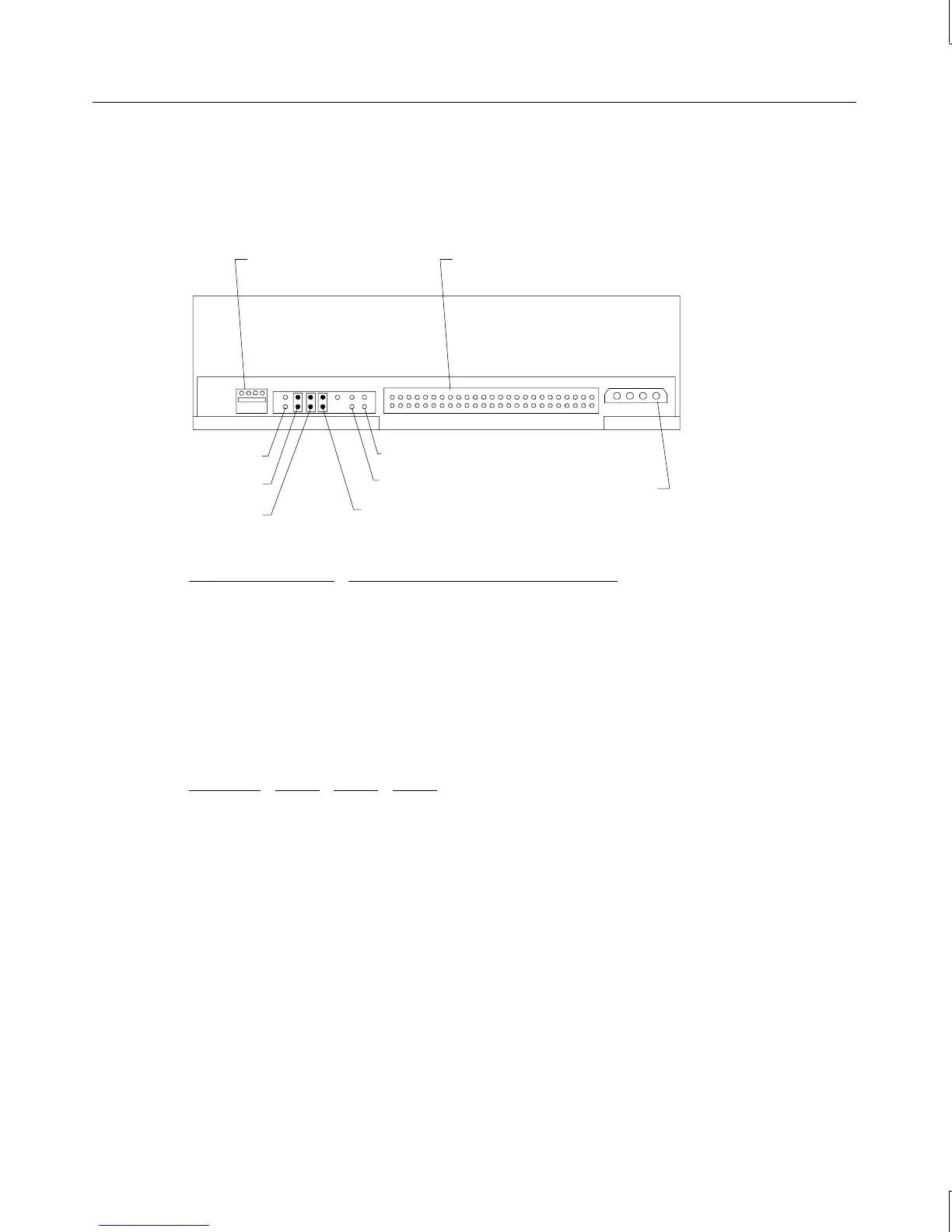

The following figure shows the back of the CD-recorder.
Audio connector
Power
connector
SCSI connector
ID1
ID2
ID4
Parity Enable jumper
Termination jumper
Term Power jumper
Device Connector Connects to
Audio (analog) Audio cable connector on sound card
Power Power supply
SCSI SCSI connector on SCSI adapter
To disable SCSI termination, remove the Termination jumper and the Term Power jumper.
Use jumpers as defined in the following table to set the SCSI ID.
SCSI ID
ID1 ID2 ID4
0 OFF OFF OFF
1 ON OFF OFF
2 OFF ON OFF
3 ONONOFF
4 OFF OFF ON
5 ON OFF ON
6 OFF ON ON
