Iomega JAZ 1 GB Internal SCSI Drive

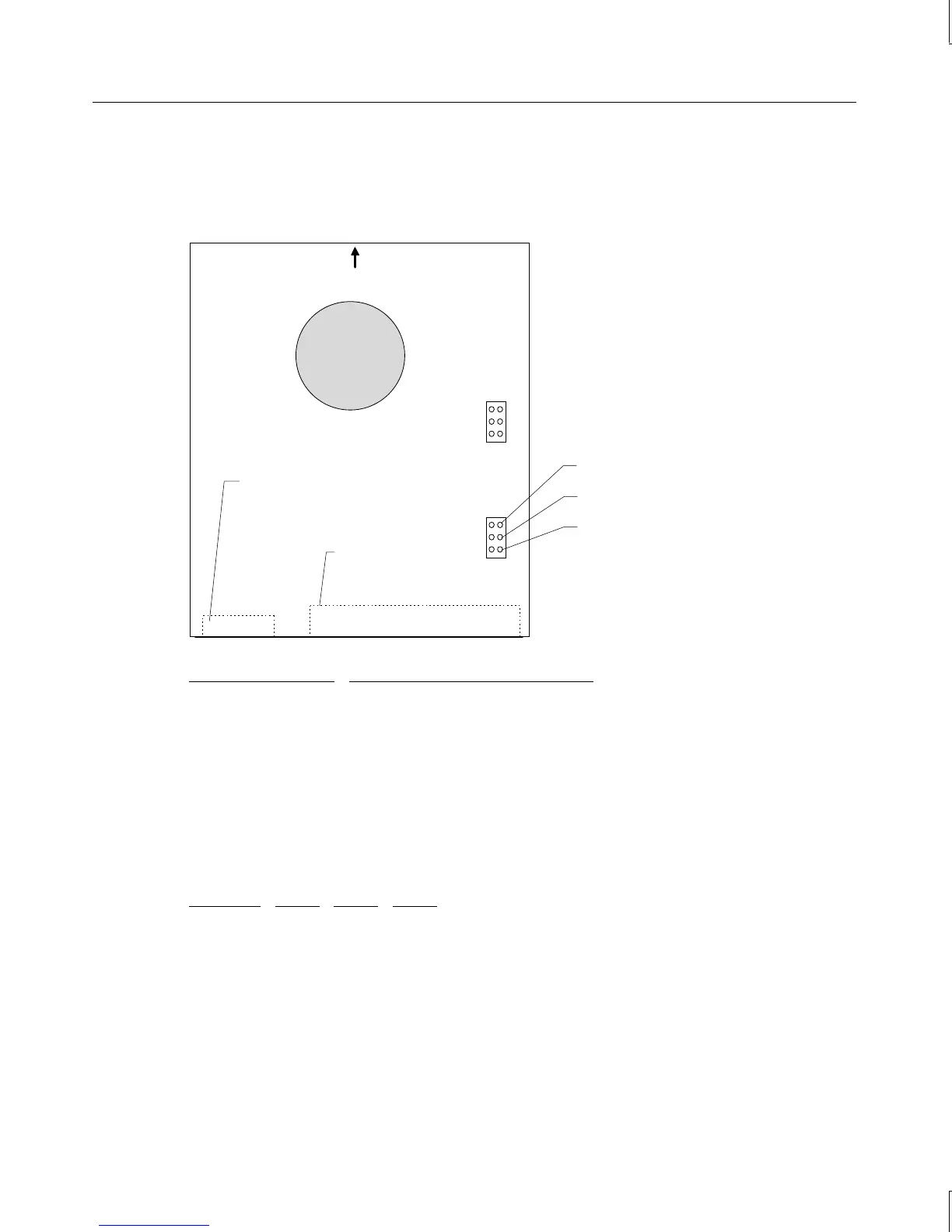

The following figure shows the jumpers on the bottom of the drive.
Power connector
SCSI connector
ID4
ID2
ID1
Front
Device Connector Connects to
Power Power supply
SCSI SCSI connector on SCSI adapter
The drive is not terminated and requires external termination only if installed as the last
device on the SCSI chain.
Use jumpers as defined in the following table to set the SCSI ID. The factory default address
is SCSI ID 5.
SCSI ID
ID1 ID2 ID4
0 OFF OFF OFF
1 ON OFF OFF
2 OFF ON OFF
3 ONONOFF
4 OFF OFF ON
5 ON OFF ON
6 OFF ON ON
