Floppy Disk Drive

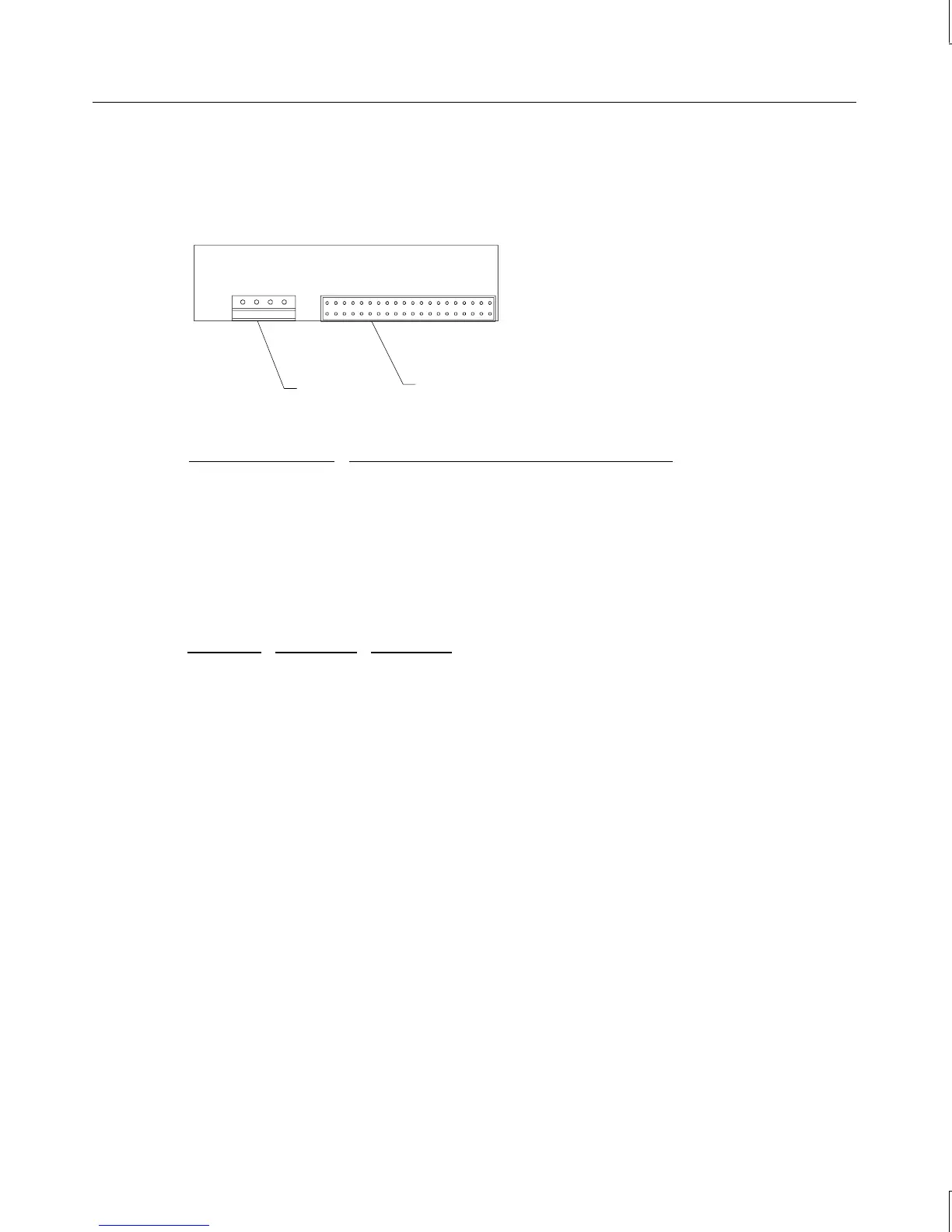

The following figure shows the cable connectors on the back of the floppy disk drive.
Data cable
connector
Power
connector
Device Connector Connects to
Power Power supply
Data Floppy disk drive controller on system board
4.3 GB and 9.1 GB Disk Drives
You can use either of the following Wide Ultra SCSI disk drives in the system:
Vendor
RPM Capacity
Seagate 7,200 9.1 GB
Seagate 7,200 4.3 GB
The following figure shows the jumper connectors J6 and J2 on the Seagate 4.3 GB and 9.1
GB disk drives. Remove the drive from its bracket to access J2.
