70
TE
SCSI
connector

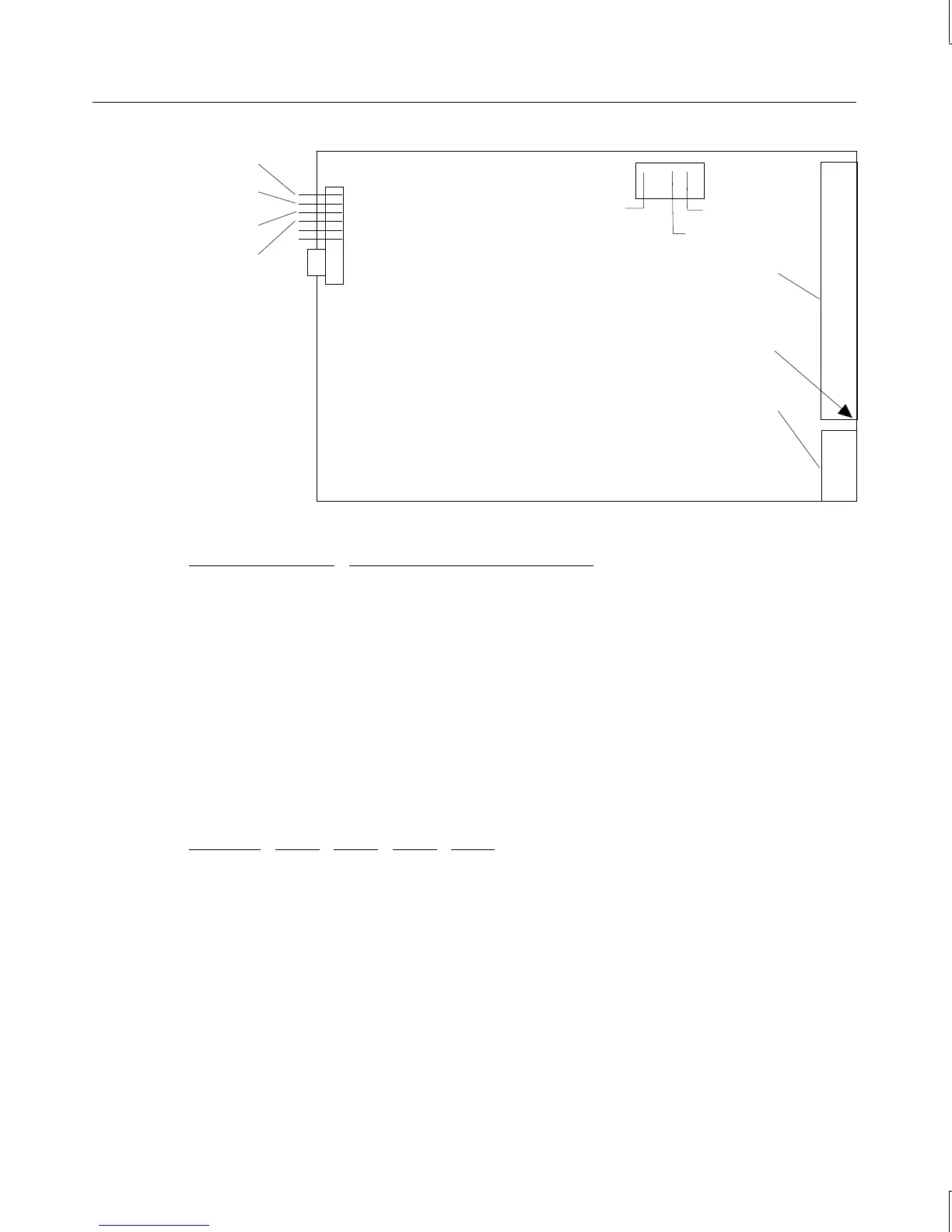

Pin 1
Power
connector
oooooooo
oooooooo
J6
J2
ID1
ID2
ID4
ID8
TP
PD
Device Connector Connects to
Power Power supply
SCSI SCSI connector on SCSI adapter
To disable SCSI termination, remove the TE jumper from connector J2. To enable parity,
remove the PD jumper from connector J2. For optimum performance, remove all jumpers
from J2.
NOTE Be sure to remove the TE jumper from J2 when using a SCSI cable with an active terminator
installed.
Use jumpers as defined in the following table to set the SCSI ID.
SCSI ID
ID1 ID2 ID4 ID8
0 OFF OFF OFF OFF
1 ON OFF OFF OFF
2 OFF ON OFF OFF
3 ON ON OFF OFF
4 OFF OFF ON OFF
5 ON OFF ON OFF
6 OFF ON ON OFF
