Keyboard, Mouse

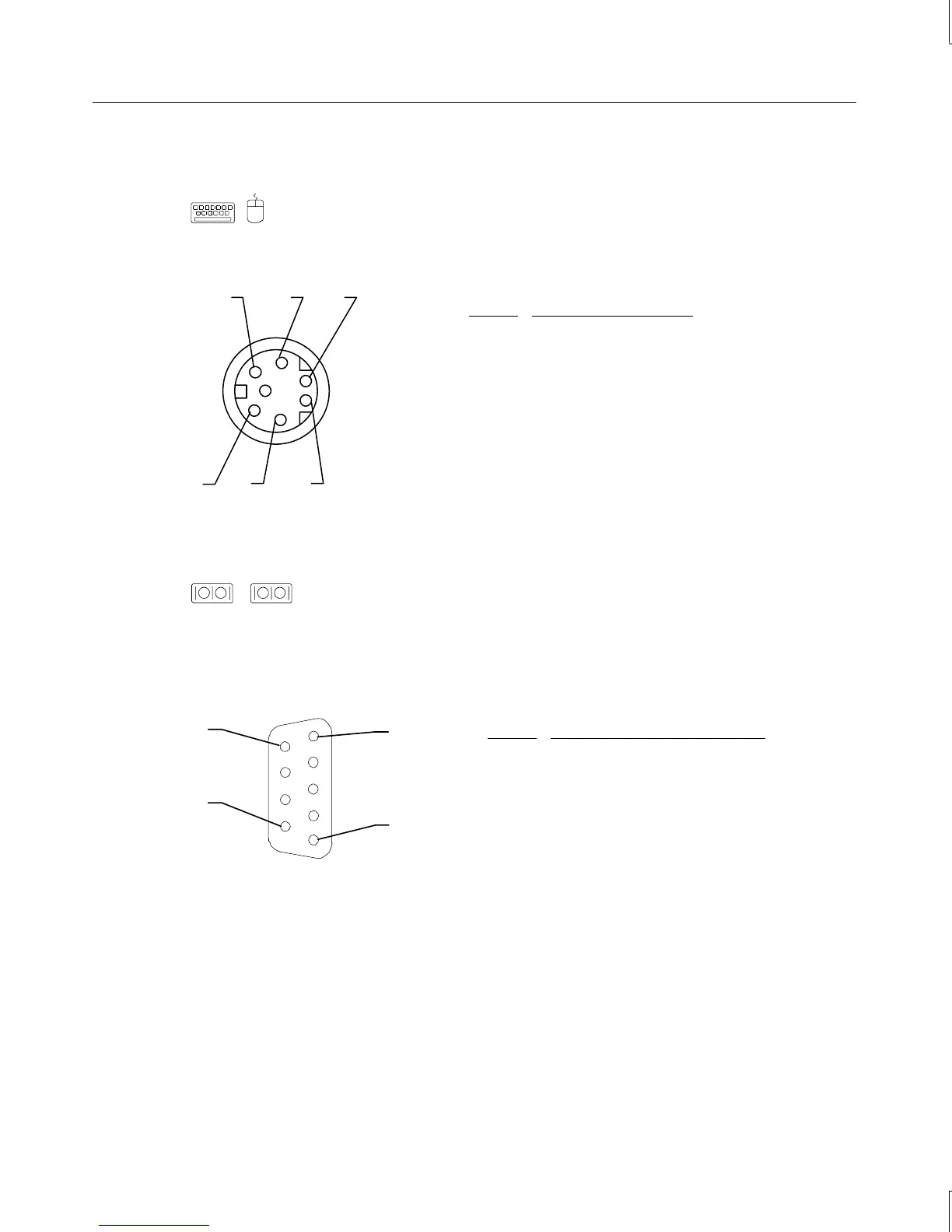

The keyboard and mouse ports are PS/2 style, 6-pin ports. They are not
interchangeable.
Pin
Signal
1 KDATA (keyboard)
MDATA (mouse)
2 Spare
3 Ground
4 VCC
5 KCLK
6 Spare
Serial
1
2
The serial ports (also referred to as RS-232 asynchronous communications
ports, or COM ports) connect modems, printers, peripherals, and other computers to the
system. The serial ports (labeled 1 and 2) are 9-pin, male DB9 connectors. If connecting a
serial device with a 25-pin DB25 connector, use a 25-pin to 9-pin adapter cable to mate with
the serial port on the system. Use only shielded cables with the serial ports.
Pin
Signal
1 DCD - Data Carrier Detect
2 RD - Receive Data
3 TD - Transmit Data
4 DTR - Data Terminal Ready
5 Ground
6 DSR - Data Set Ready
7 RTS - Request to Send
8 CTS - Clear to Send
9 RI - Ring Indicator
1 3 5
2 4 6
1
5
6
9
