Intermec EasyCoder F2 – Installation & Operation Ed. 220
Chapter 3 Installation
Being of a modular design for maximum fl exibility, the EasyCoder
F2 can use a paper supply hanger fi tted in three different positions
inside the media compartment, depending on the type of side door
(long or short) and whether the printer is fi tted with a rewind unit
for the backing paper (liner) or not. Alternatively, an external paper
supply (e.g. a box of fan-folded tickets) behind the printer can be
used. A rotating paper supply spool is also available as an option
(see chapter 9 “Options”).

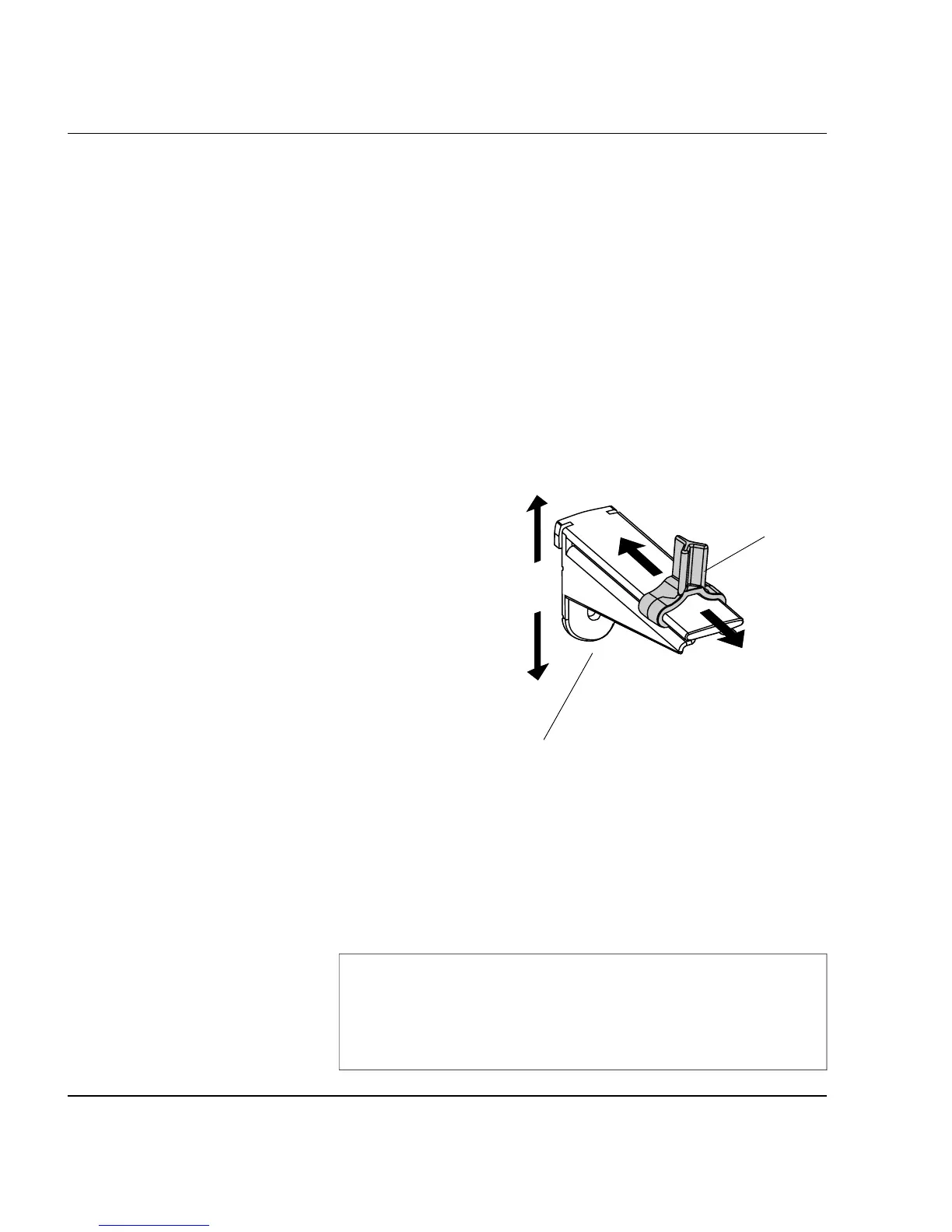

Paper Supply Hanger
The paper supply hanger fi ts both 38 – 40 mm (1.5") and 76 mm (3")
cores since it can be moved vertically in the slot in centre section. The
lowermost position is intended for small cores and the uppermost
one for large cores only. The hanger is locked by a screw and has a
moveable guide to fi t various paper widths.
To remove the hanger, remove the screw, twist the hanger a quarter
of a turn and pull it out.
To fi t the hanger into a slot in the centre section (see next page),
rotate it a quarter of a turn and twist back so the lips engage the
cut-outs in the sides of the slot. Move it up (3" core) or down (1.5"
core) as far as it goes and secure it with the screw.
Warning:
Make sure to fi t the hanger according to the size of the paper
roll core. When the hanger is fi tted in its upper position, the
screw will interfere with any small (38 mm/1.5") core causing
paper misalignment.
76
