Chapter 3 Installation
Controls and
Indicators
Control Lamps
The EasyCoder F2 has several ways of communicating directly with
its operator; three control lamps, a display window, a membrane-
switch keyboard with 22 programmable keys, a big programmable
“Print” button on the printer's front, and a beeper.
The control lamps are coloured LEDs (Light Emitting Diodes) and
are used for the following purposes:
• Power (green) indicates when the power is on.
• Ready (green) indicates when the printer is ready for use.
• Error (red) indicates when some kind of error has occurred. If
using a serial communication, an error message may be returned
to the host computer.
The display window contains an LCD (Liquid Crystal Display) with
background illumination and 2 lines of text, each with 16 characters.
It guides the operator through the setup and informs him or her of
possible errors during printing.
The Intermec Fingerprint programming language and the Intermec
Direct Protocol allows custom-made messages to be composed and
displayed according to the requirements of the application.

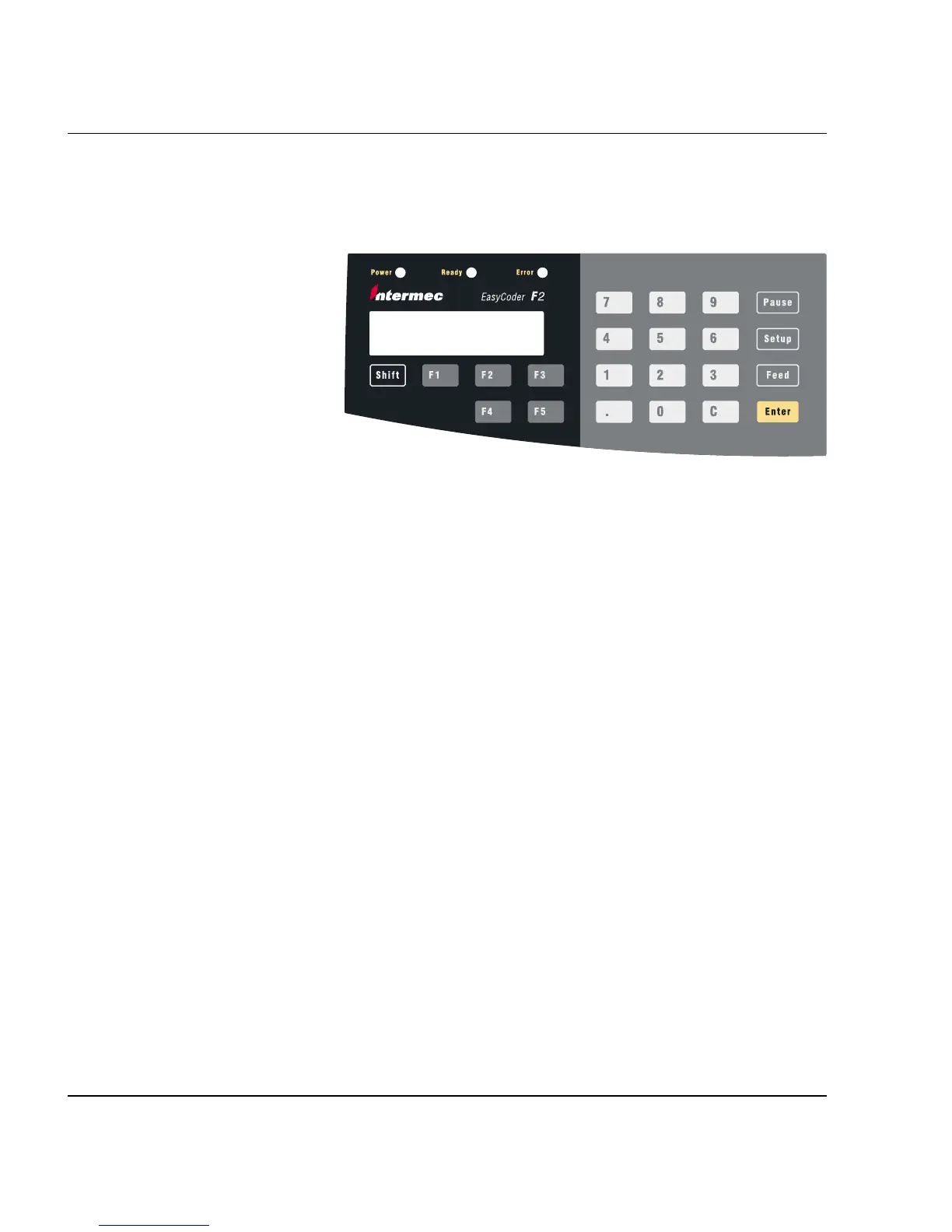

The keyboard is of membrane switch type and has 22 keys. The
keyboard is supplemented by a large “Print” button on the printer's
front. Some keys have hardcoded functions in the startup and
setup modes.
In application programs created by means of the Intermec Fingerprint
programming language, the keys can be assigned to various functions
according to requirements. As one key is assigned as shift key, up
to 44 different key combinations are possible. An audible signal,
which can be turned off if so desired, acknowledges that a key
has been pressed.
Display
Keyboard
