International Electronics prox.pad plus - Figure 3-7 Maglock (Fail Safe) Wiring Diagram

BLACK
(V-)
BLUE
(MAIN RELAY C
)
V-
V+
MAGLOCK
(FAIL SAFE)
POWER
SUPPLY
GRAY
(
MAIN RELAY N/C)
RED
(V + IN)
P5
P4
P1
P2
P3

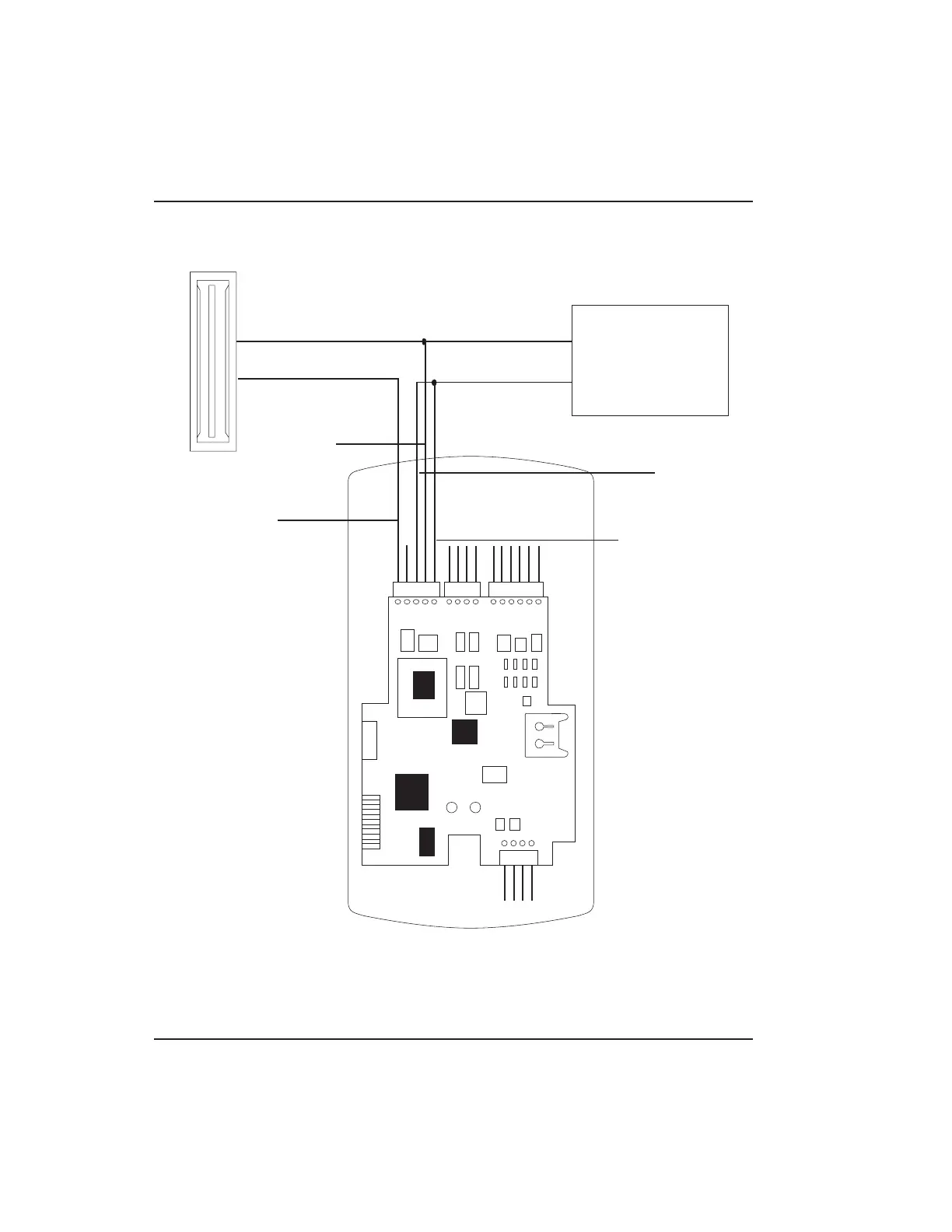

Figure 3-7 MagLock (Fail Safe) Wiring Diagram
Chapter 3: Wiring 3.1 Wiring the prox.pad plus Unit
3-12 prox.pad plus Install/Program. Manual, PPP, D2
