INTORQ BFK458 - Basic Module N; Basic Module L

Product description
INTORQ | BA 14.0168 | 11/2018 17
3.2.2 Basic module N

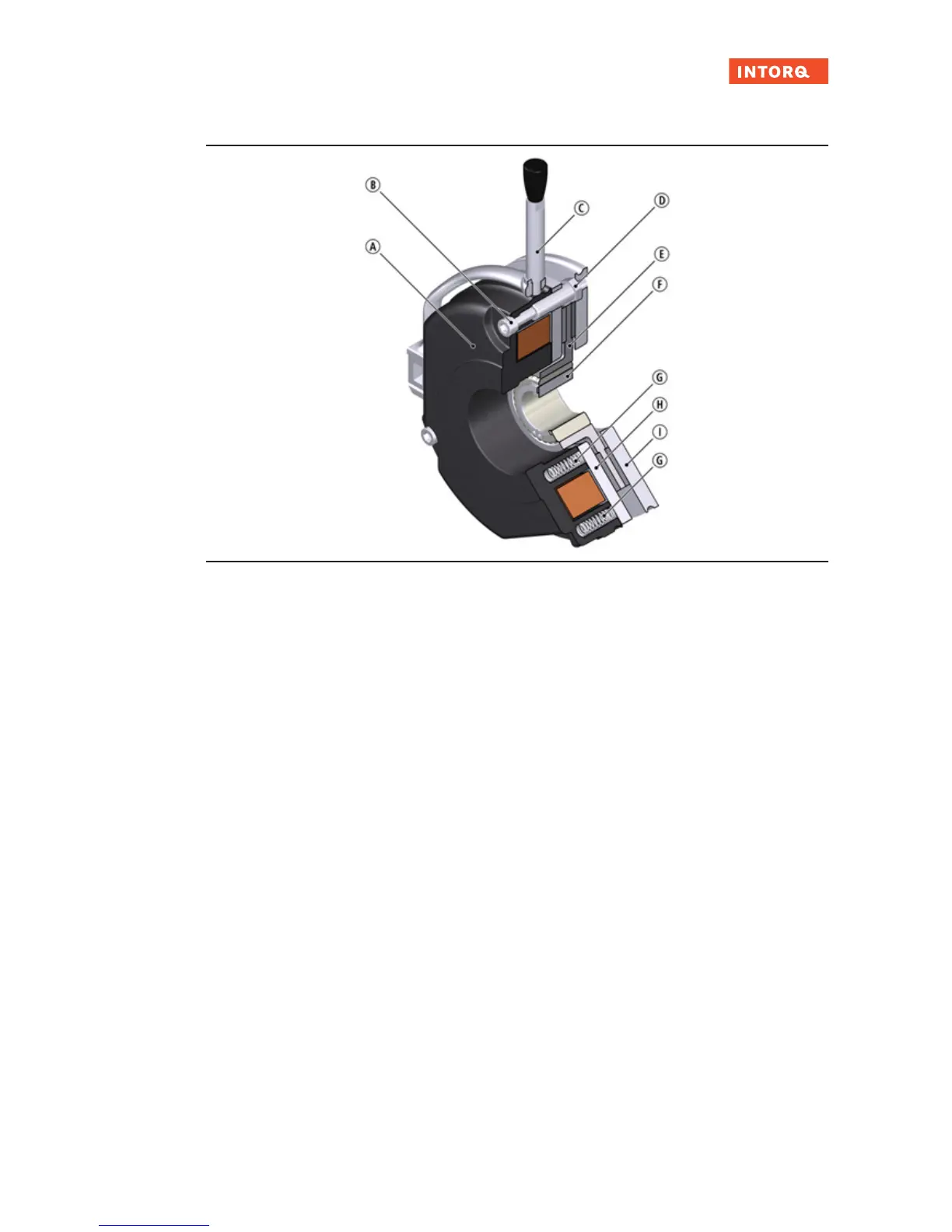

Fig.2: Design of the INTORQ BFK458 spring-applied brake: Basic module N (complete stator) + rotor + hub + flange
A
Stator
B
Socket head cap screw
C
Hand-release (optional)
D
Sleeve bolt
E
Rotor
F
Hub
G
Pressure spring
H
Armature plate
I
Flange
3.2.3 Basic module L
Description of the long-life design:
¾
Armature plate with low backlash and reinforced torque support
¾
Pressure springs with guide pins for protection against shearing forces
¾
Aluminium rotor with toothed intermediate ring: Low-wear friction lining and low-wear gear teeth.
The long-life design can be configured modularly for size 6 to size 12 in combination with the specified
rated torques. The specifications are as follows:
¾
The stator corresponds to the design N.
¾
Rear bores and extensions are not possible.
¾
A micro-switch in the size 12 is not configurable.
