Mechanical installation
INTORQ | BA 14.0168 | 11/2018 37
5.4 Installing the hub onto the shaft
Notice
The customer is responsible for dimensioning the shaft-hub connection. Make sure that the
supporting length of the key is identical to the length of the hub.
NOTICE
For brakes with HFC linings, only use the hubs provided; consult with INTORQ if neces-
sary.

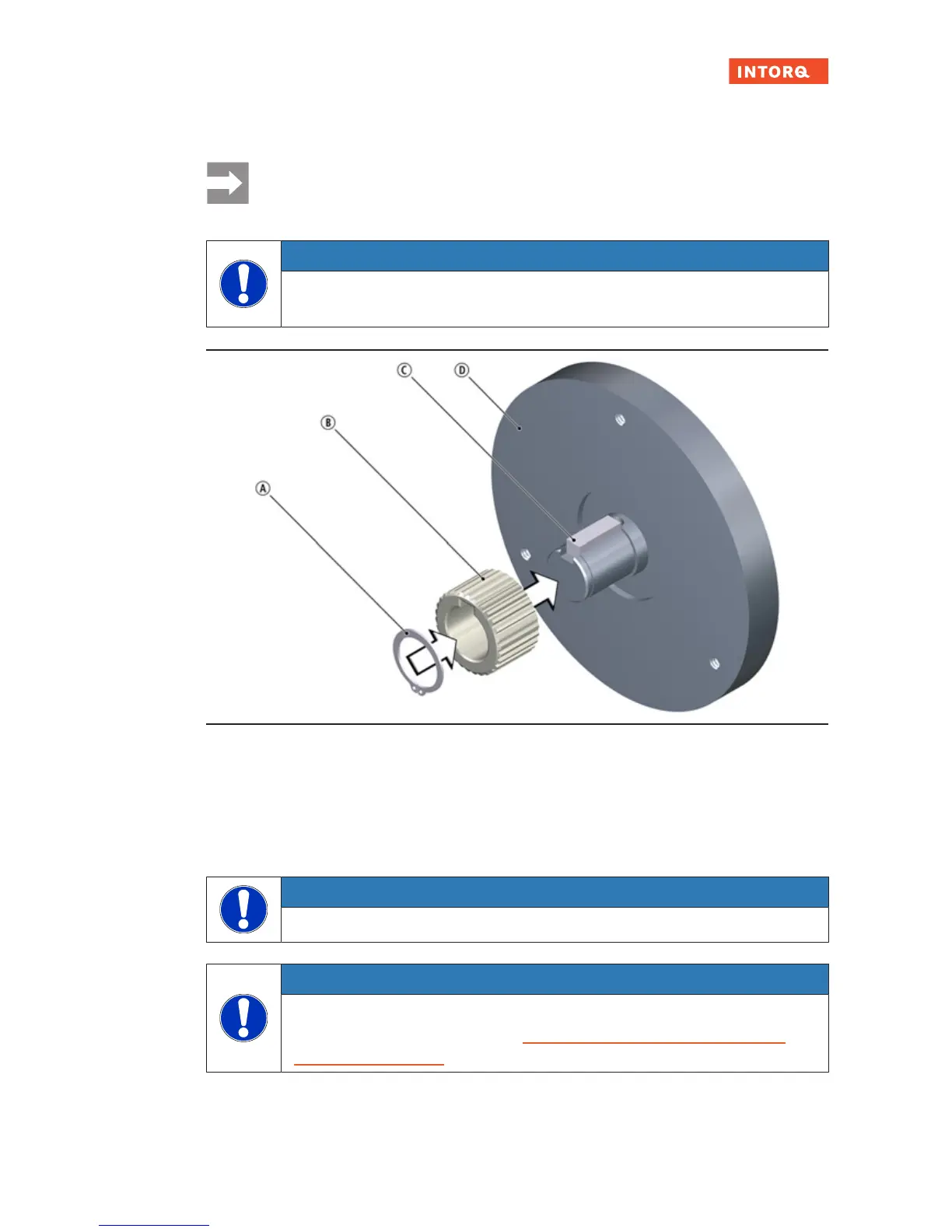

Fig.9: Installing the hub onto the shaft
A
Circlip
B
Hub
C
Key
D
End shield
1. Press the hub with a moderate amount of force to the shaft.
2. Secure the hub against axial displacement (for example, by using a circlip).
NOTICE
If you are using the spring-applied brake for reverse operations, glue the hub to the shaft.
NOTICE
When using the spring-applied brake as a safety brake: Observe the information concern-
ing the shaft-hub connection in section Applications with special safety requirements
("Safety Brake"),Page15.
