8.4 Spare parts list
Spring-applied brake INTORQ BFK458-06 to 25

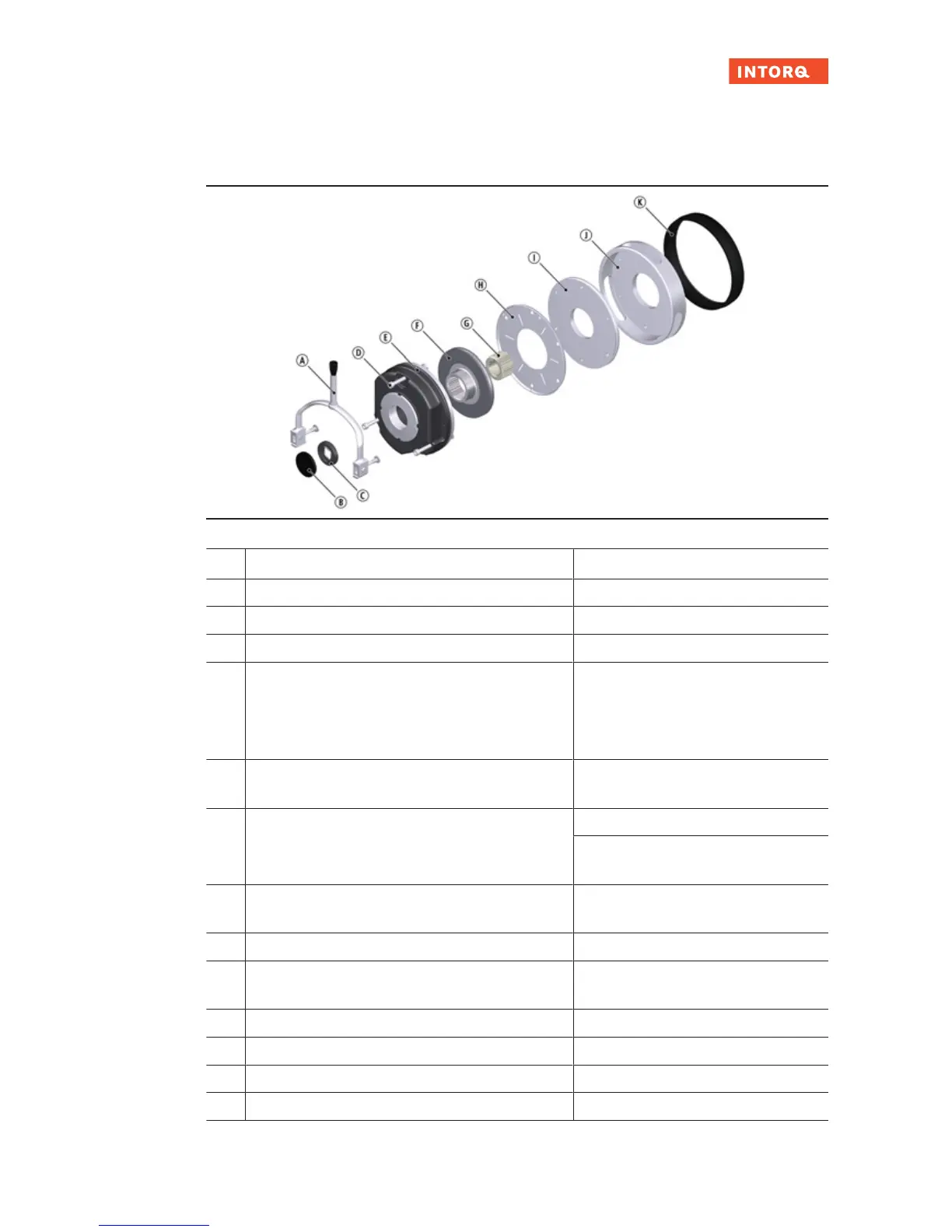

Fig.34: Spring-applied brake INTORQ BFK458-06 to 25
Designation Variant
A
Hand-release with standard lever Mounting kit
B
Cap Basic module N
C
Shaft sealing ring Shaft diameter on request
D
Screw set DIN EN ISO 4762 - 8.8
in various designs and lengths
¾
for mounting to the flange
¾
for mounting to the motor / friction
plate
¾
for flange with through hole
E
Complete stator, module E
Complete stator, module N
Voltage / braking torque
Module E: Optionally with rear threads
F
Complete rotor
Aluminium rotor
Aluminium rotor with sleeve
- Noise-reduced design
G
Hub
Bore diameter [mm] keyway according to
DIN 6885/1
H
Friction plate
I
Flange
Hard chrome-plated flange
J
Centring flange (tacho flange)
K
Cover ring
Brake cover (degree of protection corresponds to IP65)
Terminal box as mounting kit
