INTORQ BFK458 - Commissioning and Operation; Testing the Hand-Release Functionality

Commissioning and operation
INTORQ | BA 14.0168 | 11/2018 59
7.2.3 Testing the hand-release functionality
NOTICE
This operational test is to be carried out additionally!

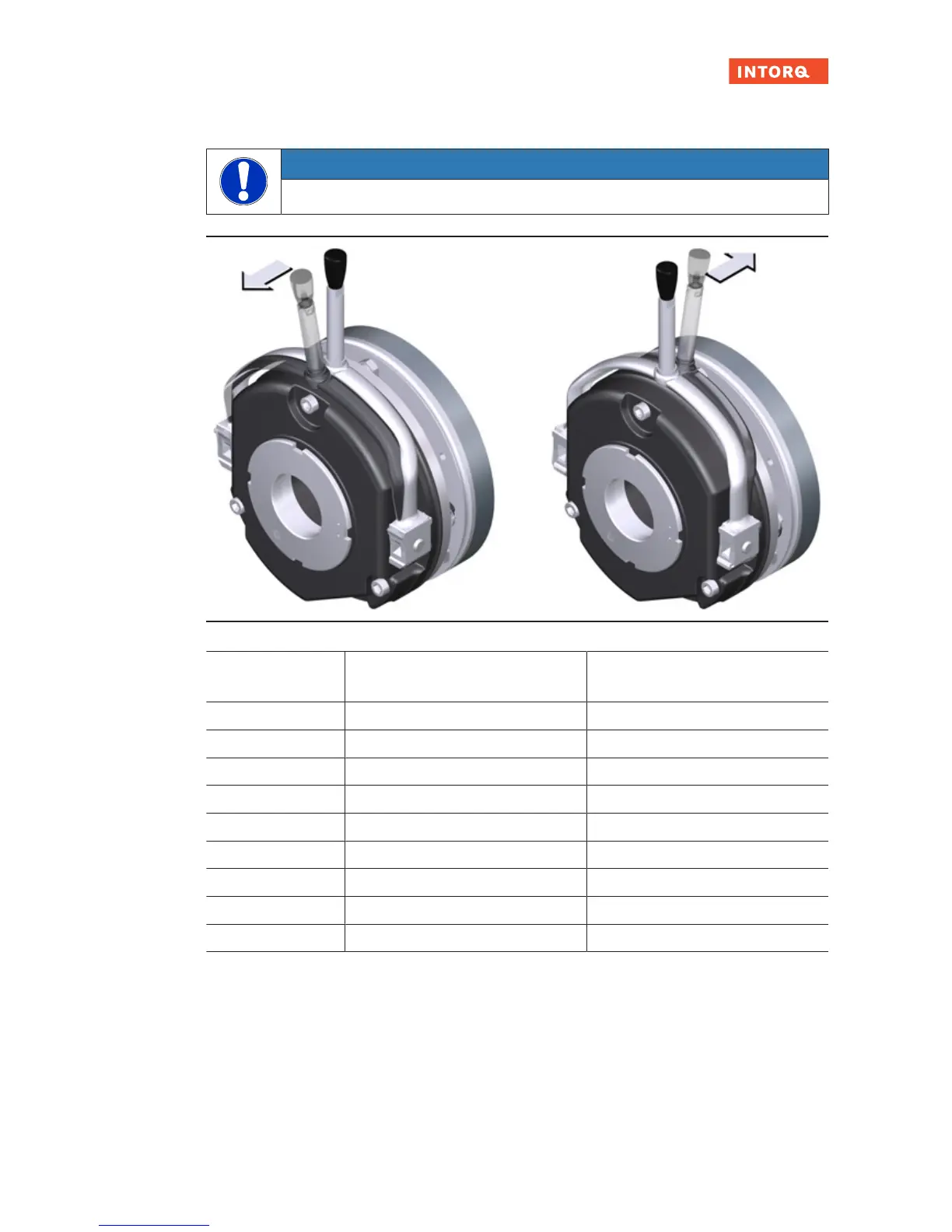

Fig.32: Turning direction of the lever
Size Hand force [N]
Standard braking torque
Hand force [N]
Maximum braking torque
06 20 30
08 35 50
10 55 75
12 90 120
14 130 170
16 150 230
18 220 250*
20 260 330*
25 270 350*
Tab.17: Actuating forces
* When used with a long lever
