4.8 Hand-release
The hand-release mechanism is used to release the brake by hand and can be retrofitted (refer to In-
stalling the hand-release (retrofitting),Page48).
The hand-release springs back to its original position automatically after operation. The hand-release re-
quires an additional air gap s
HL
in order to function; this is factory-set prior to delivery. Verify the dimension
s
HL
after the installation.
Brake completely installed Stator (not attached to the motor)

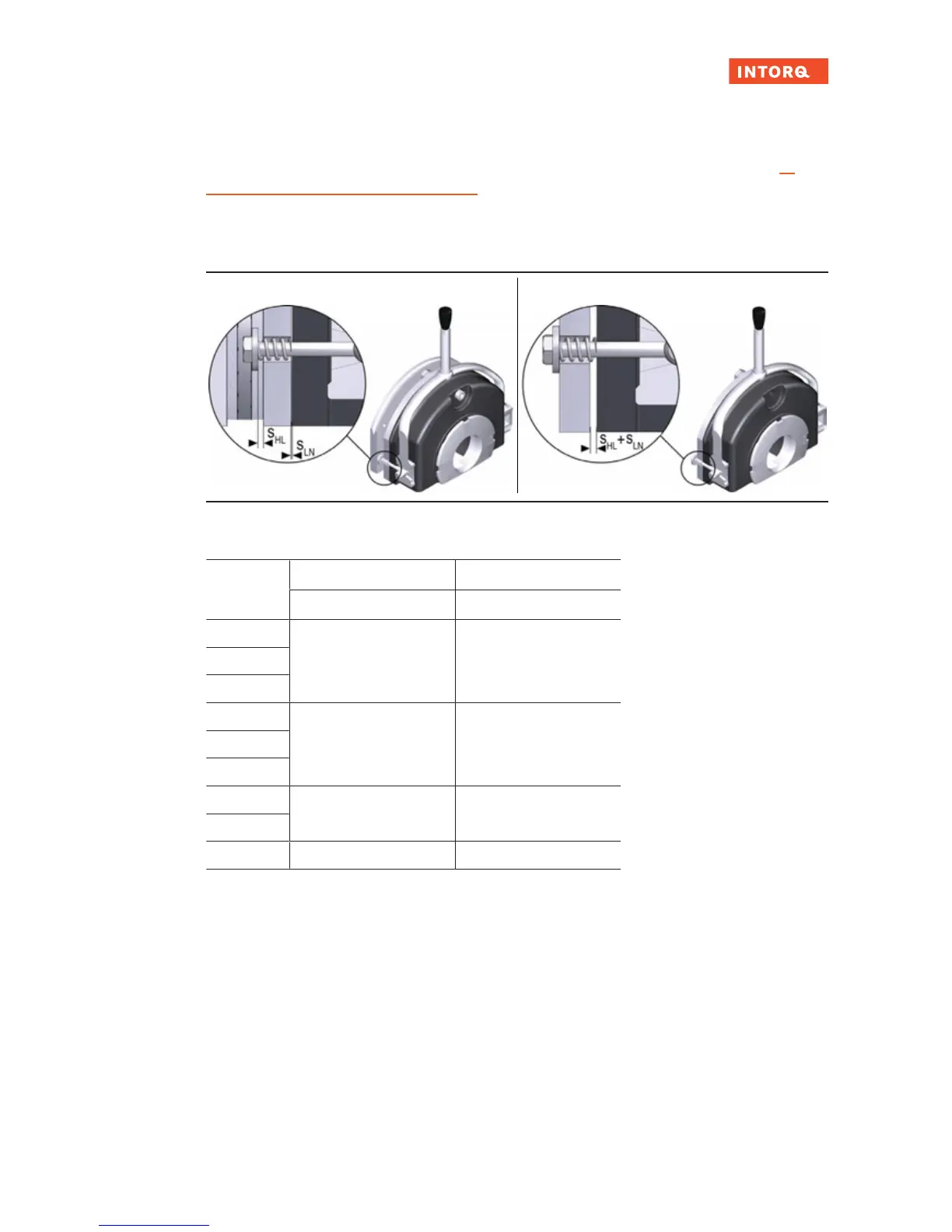

Fig.6: Positions of the adjustment dimensions that must be checked
Size S
LN
+0.1 / -0.05
S
HL
+0.1
[mm] [mm]
06
0.2 108
10
12
0.3 1.514
16
18
0.4 2
20
25 0.5 2.5
Tab.11: Adjustment setting for hand-release
