Mechanical installation
INTORQ | BA 14.0168 | 11/2018 45
1. Place the flange against the end shield.
2. Use the six screws to screw the flange to the end shield.
3. Check the height of the screw heads. The screw heads must not be higher than the minimum rotor
thickness.
NOTICE
Tighten the screws evenly (for tightening torques, refer to the table Rated data: screw kit
for brake assembly on separately screwed-on flange,Page24 ).
5.8 Installing the double spring-applied brake

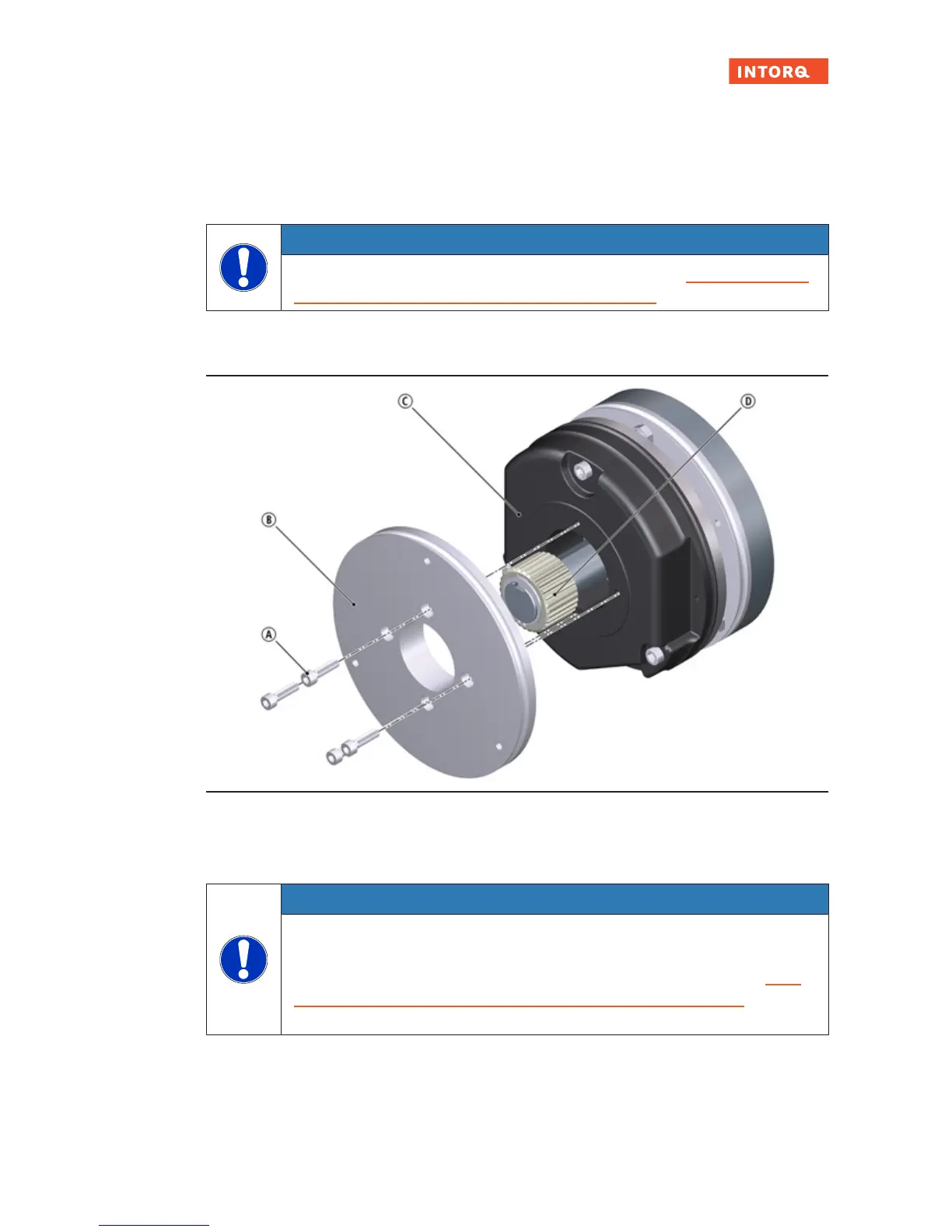

Fig.18: Installing the intermediate flange
A
Screw from the screw set
B
Intermediate flange
C
Rear stator
D
Front hub
NOTICE
When installing the double spring-applied brake, use screws of the required strength
class. Install them using the tightening torque specified in the table for the screw kit for in-
termediate flange mounting for double spring-applied brakes as well as the table Rated
data: screw kit for brake assembly on separately screwed-on flange,Page24 (in the
column "Screw kit for mounting on flange").
