INTORQ BFK458 - Mechanical Installation; Mounting the Rotor

Mechanical installation
INTORQ | BA 14.0168 | 11/2018 38
5.5 Mounting the brake
Mounting the rotor (without friction plate / without brake flange)

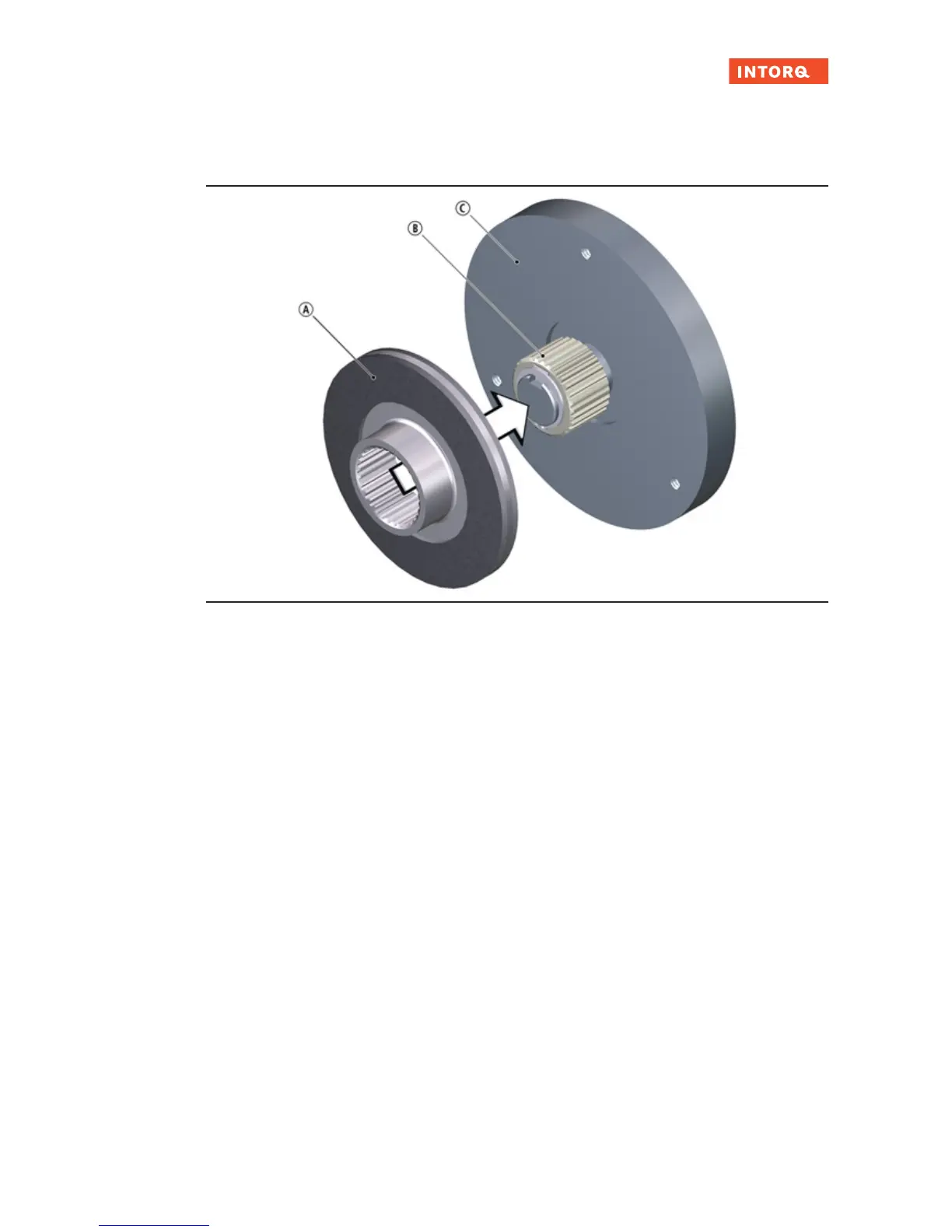

Fig.10: Assembly of the rotor
A
Rotor
B
Hub
C
End shield
1. Push the rotor on the hub.
2. Check if the rotor can be moved manually.
