INTORQ BFK458 - Mechanical Installation; Mounting the Complete Stator

Mechanical installation
INTORQ | BA 14.0168 | 11/2018 39

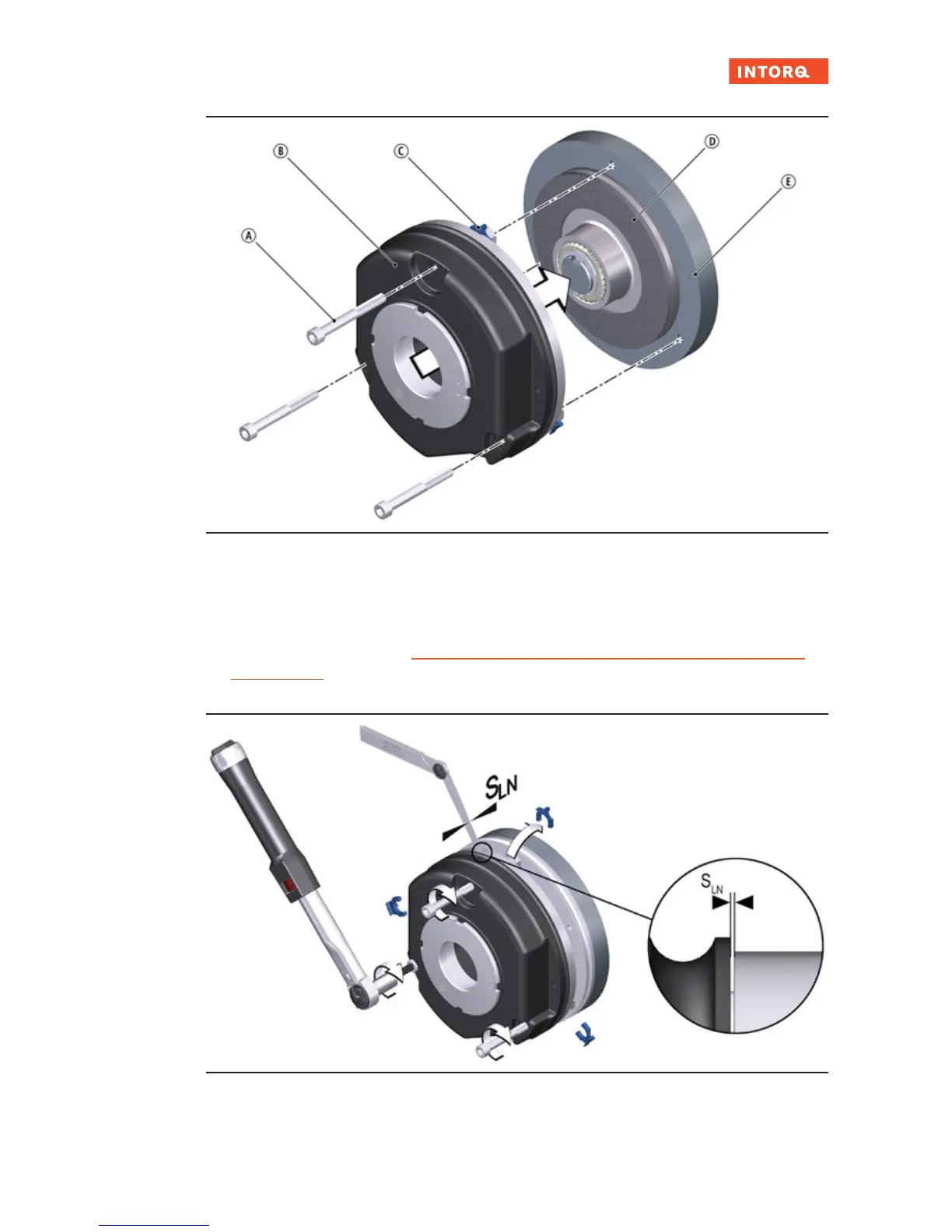

Fig.11: Mounting the complete stator
A
Socket head cap screw
B
Stator, complete
C
Terminal clip
D
Rotor
E
End shield
3. Screw the complete stator to the end shield Use the supplied screw set and a torque wrench (for tight-
ening torque, refer to the table Rated data: screw kit for brake assembly on separately screwed-on
flange,Page24 ).
4. Remove the terminal clips and dispose of properly.
Fig.12: Tightening the screws with a torque wrench
