Invacare ILIFTEE - Installing the Scale

I-Lift™
9.3InstallingtheScale
1.Removethehangerbar.Referto9.2RemovingtheSwivelBar,
page47.

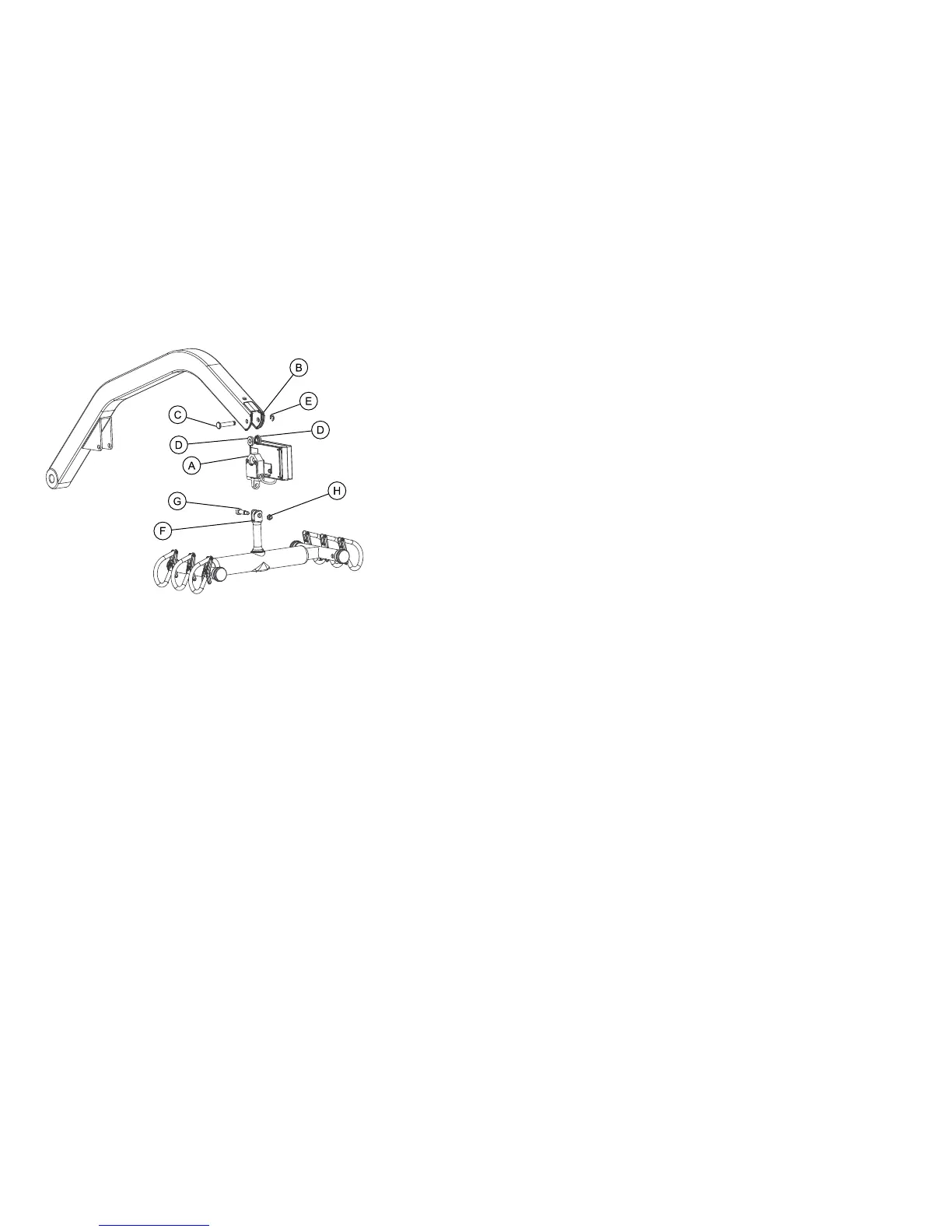

2.PositiontheloadcellassemblyAofthescaleintotheboom
mountingbracketB.
3.Securethescaletotheboommountingbracketwiththeclevis
pinC,twospacersDandtheclipE.
4.SecurethehangerbarFtothescalewiththeshoulderbolt
GandlocknutH.
5.Weighthepatient.Referto9.5WeighingthePatient,page50.
