5. Operation

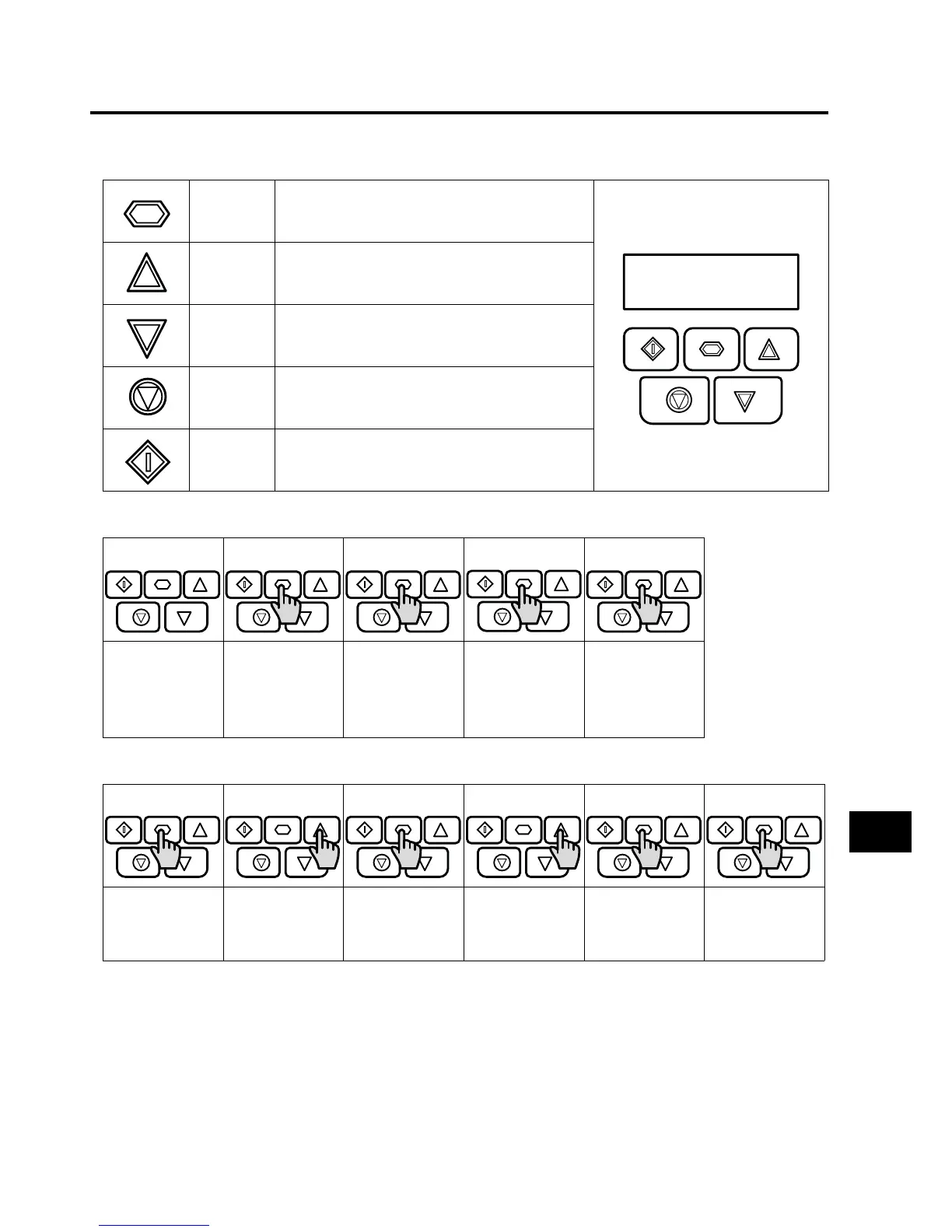

5.1. Managing the Keypad
The drive is configured and its operation monitored via the keypad and display.
NAVIGATE
Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes.
UP
Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode.
DOWN
Used to decrease speed in real-time mode or to
decrease parameter values in parameter edit mode.
RESET /
STOP
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
START
When in keypad mode, used to Start a stopped drive or
to reverse the direction of rotation if
bi-directional keypad mode is enabled.
5.2. Operating Displays

 

 

 



Drive Stopped /
Disabled
Drive is enabled
/ running, display
shows the output
frequency (Hz)
Press the Navigate
key for < 1 second.
The display will
show the motor
current (Amps)
Press the Navigate
key for < 1 second.
The display will
show the motor
power (kW)
If P-10 > 0, pressing
the Navigate key
for < 1 second will
display the motor
speed (RPM)
5.3. Changing Parameters
     
Press and hold the
Navigate key > 2
seconds
Use the up and
down keys to
select the required
parameter
Press the Navigate
key for < 1 second
Adjust the value
using the Up and
Down keys
Press for < 1 second
to return to the
parameter menu
Press for > 2
seconds to return
to the operating
display
Operation
5
