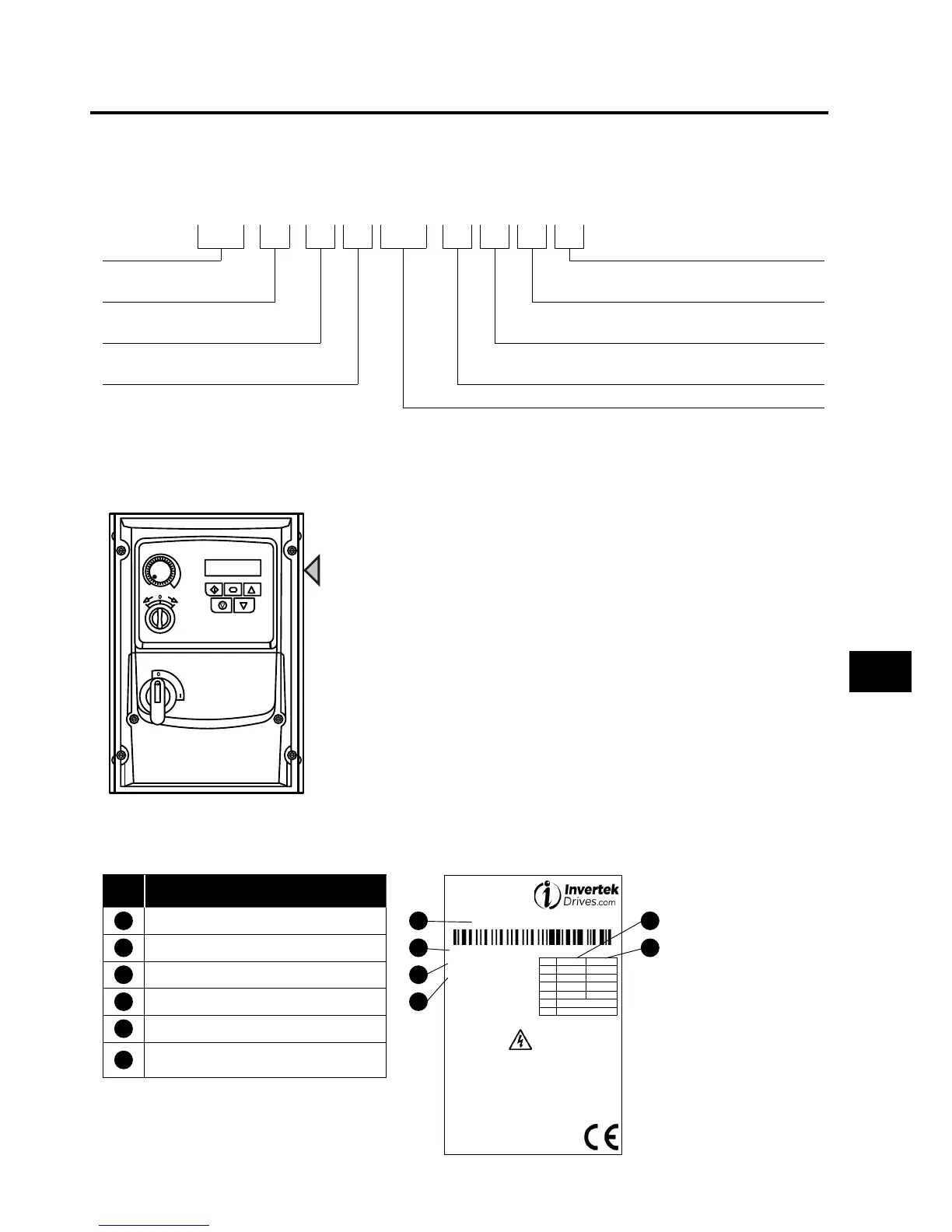

2. General Information and Ratings
This chapter contains information about the Optidrive E3 including how to identify the drive.
2.1. Identifying the Drive by Model Number
Each drive can be identified by its model number, as shown in the table below. The model number is on the shipping label and the
drive nameplate. The model number includes the drive and any options.
ODE - 3 - 1 2 0021 - 1 F 1 A
Product Family IP Rating
A = IP66 Non Switched
B = IP66 Switched
Generation Dynamic Brake
Transistor
1 = Not Fitted
4 = Internal Transistor
Frame Size Filter Type 0 = No Filter
F = Internal EMC Filter
Input Voltage 1 = 110 – 115 No. Of Input Phases
2 = 200 – 240
4 = 380 – 480
Output Current x 10
2.2. Product Rating Label Location
All Optidrive E3 models carry a rating label, which can be located as follows:
On right hand side when
viewed from the front.
2.3. Understanding the Rating Label
The product rating label provides the following information.
Key
ODE-3 G266S, S1, 200-240,
3ph, 0.37kW/0.5HP, 2.3A
ODE-3 G266S, S1, 200-240,
3ph, 0.37kW/0.5HP, 2.3A
11111111111
S1 IGBT PCB Part No. -
200-240 1 10V, ph IP, A
45-E311P- xx-xx10
S1 IGBT PCB -
1 Model Code 1 5
2 Enclosure Type and IP Rating 4 6
3 Firmware Version 2
4 Serial Number 3
5 Technical Data – Supply Voltage
6
Technical Data – Maximum continuous
output current
General Information & Ratings
2
