5.3.2 Manual controller and LED indicator
No. Code Meaning Instruction
1 COM
Connection signal of manual controller
and EC160
On when normal communication
2 CAN
Connection signal of manual controller
and the car
On when normal communication
3 PC
Connection signal of manual controller
and the computer
On when normal communication
4 ALM Connection fault Flash when no communication

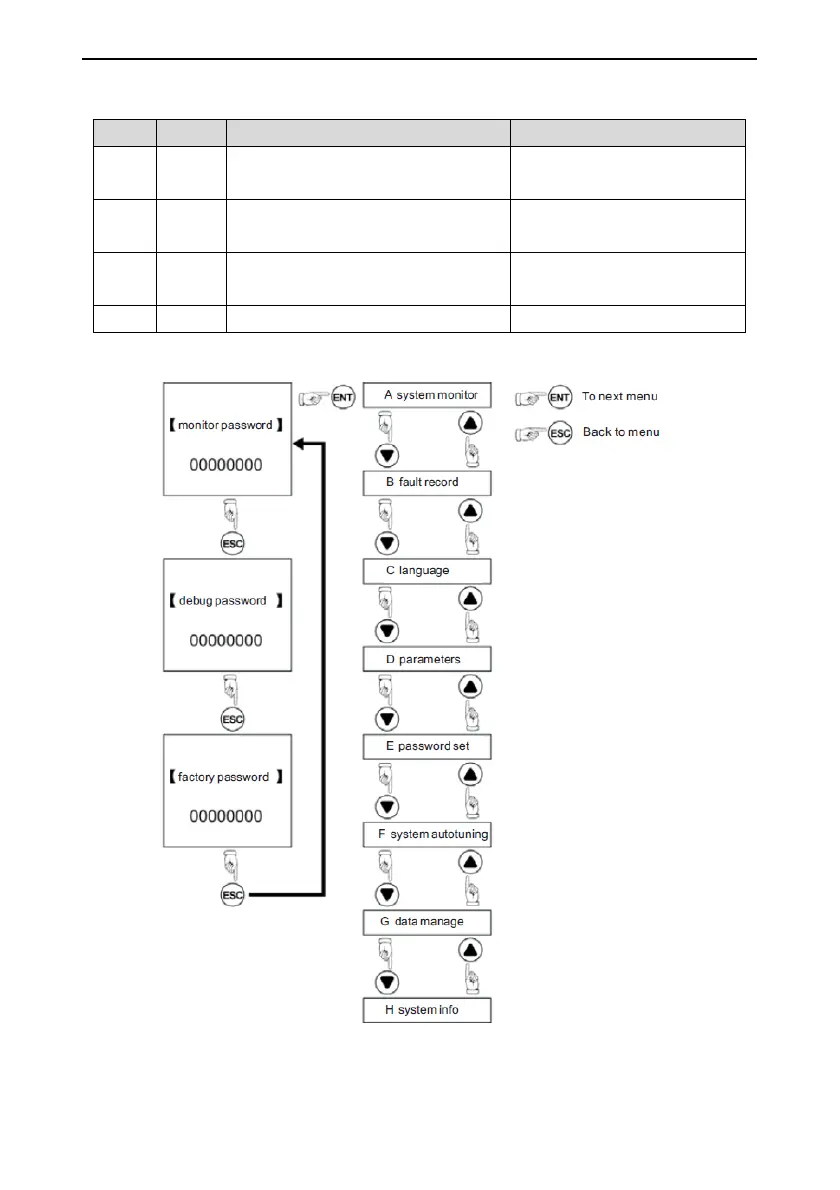

5.4 Operation procedure flowchart
Figure 5-3 Operation procedure flowchart
