Goodrive270 series VFD for fan and pump Installation guidelines
-24-
3. Assemble the mounting rail (optional part).
As shown in Figure 4±14, assemble the mounting rail, align the two front hooks with the nine-fold
profile notch, and snap them into place.

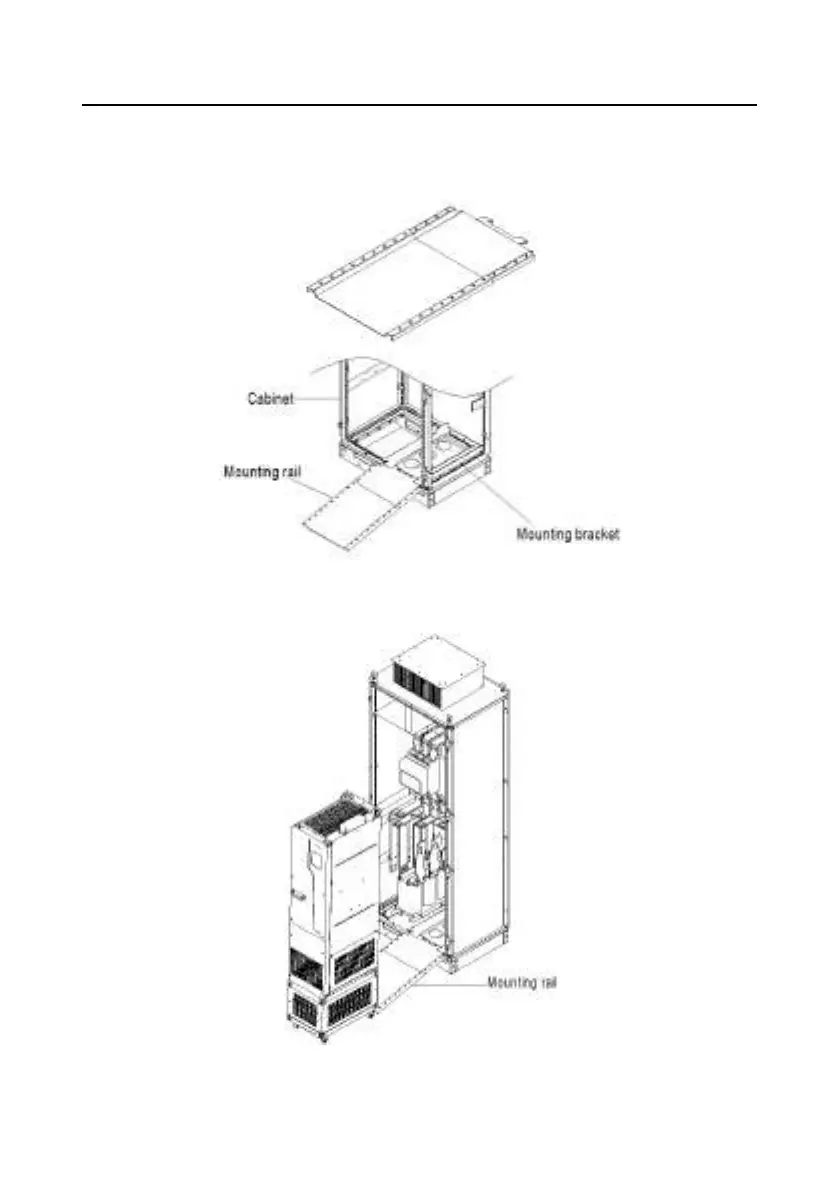

Figure 4±14 Mounting rail diagram
4. Push the VFD into the cabinet.
Figure 4±15 Aligning the VFD casters with the mounting rail
