Goodrive200A inverters
Appendix B
142

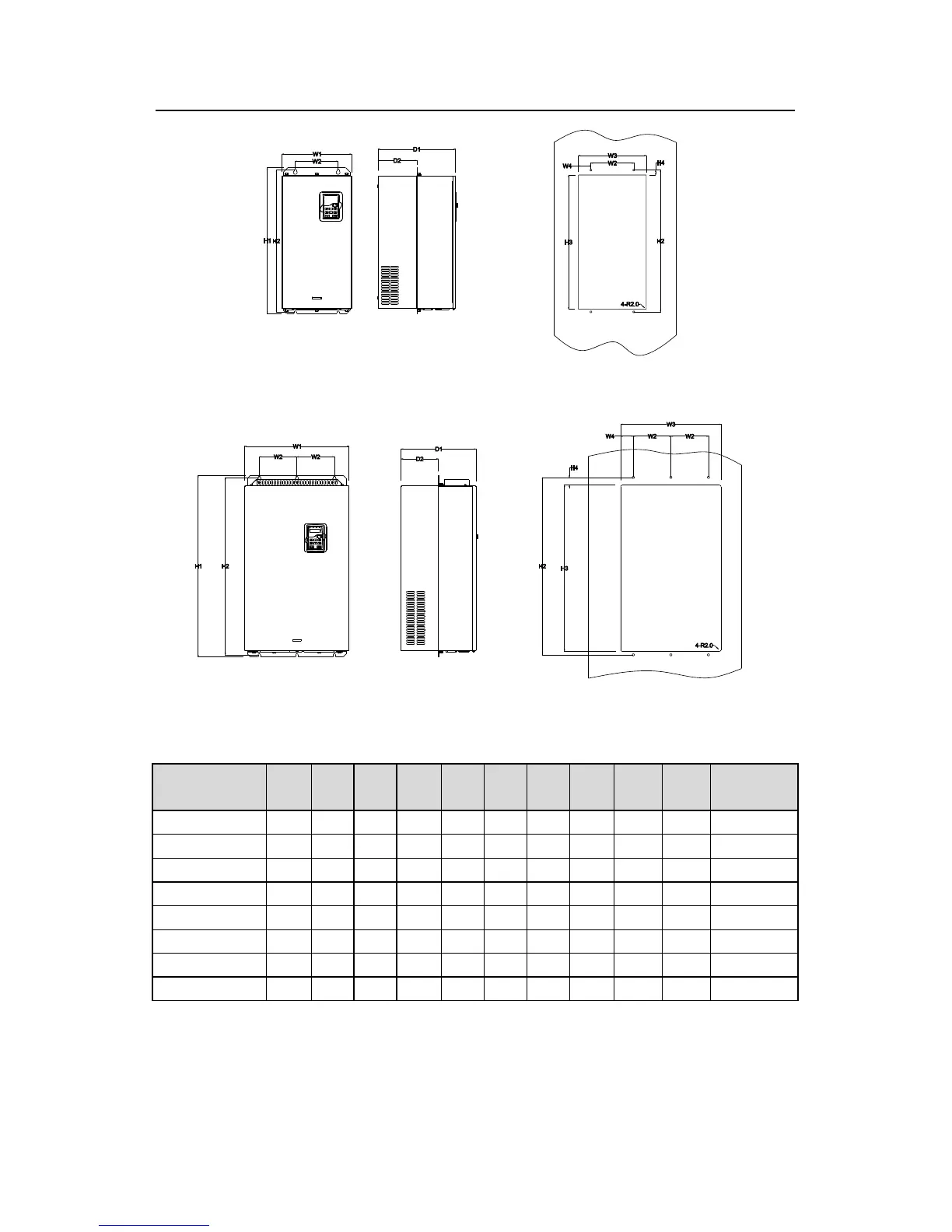

37-110kW flange mounting
132-200kW flange mounting
Installation dimension (unit: mm)
Model W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
I
nstallation
hole
0.75kW~2.2kW
150.2
115
130
7.5
234
220
190
13.5
155
65.5
5
4kW~5.5kW
170.2
131
150
9.5
292
276
260
6 167
84.5
6
7.5kW~15kW
191.2
151
174
11.5
370
351
324
12
196.3
113
6
18.5kW 250
210
234
12
375
356
334
10
216
108
6
22kW~30kW
275
237
259
11
445
426
404
10
245
119
7
37kW~55kW
270
130
261
65.5
555
540
516
17
325
167
7
75kW~110kW
325
200
317
58.5
680
661
626
23
363
182
9.5
132kW~200kW
500
180
480
60
870
850
796
37
358
178.5
11
