INVT Goodrive 200A

Goodrive200A inverters Function parameters
50
Function
code
Name Detailed instruction of parameters
Default
value
Modify

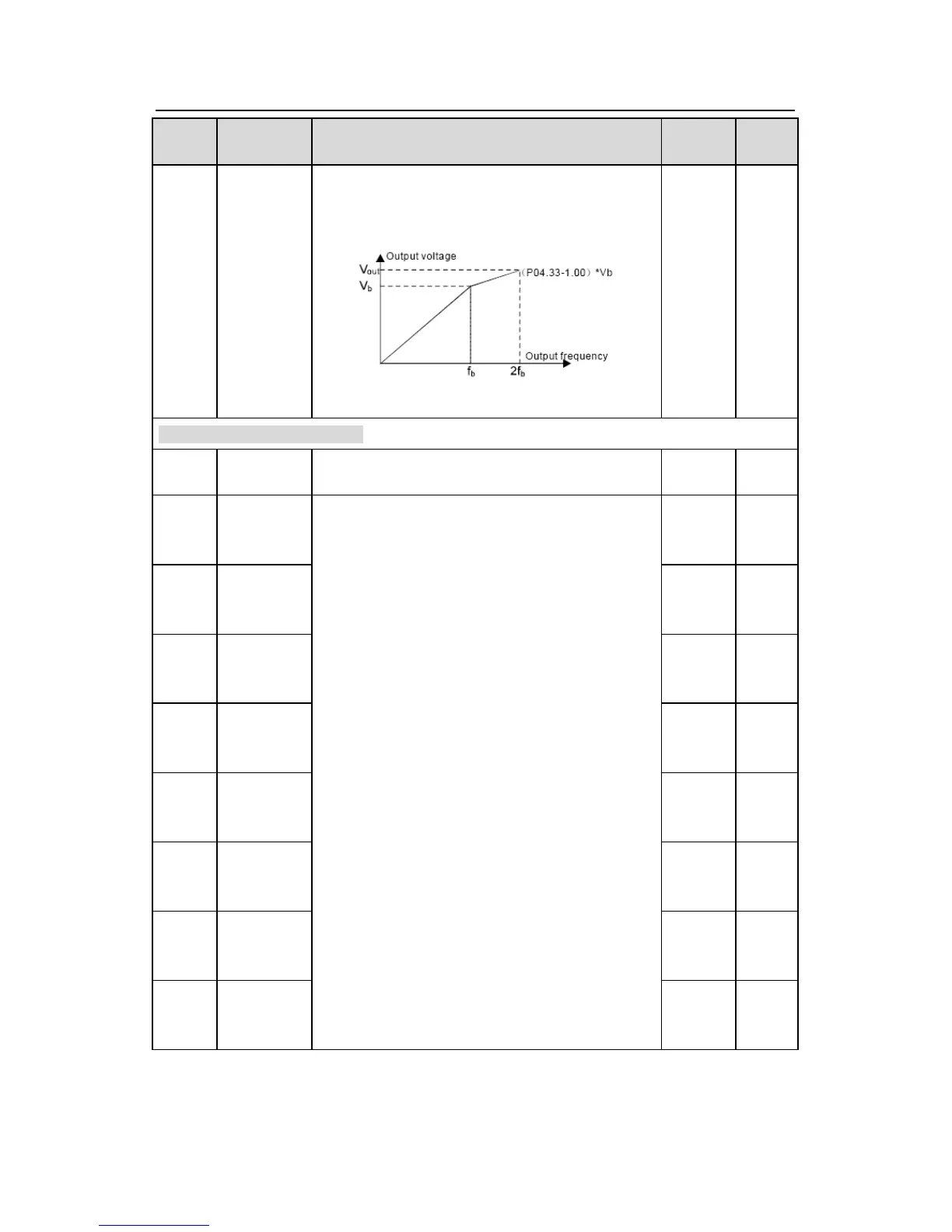

P04.33
Weaking
coefficient at
constant
power
Used to adjust the output voltage of inverter in
SVPWM mode when weaking magnetic.
Note: Invalid in constant-torque mode.
The setting range of P04.33: 1.00~1.30
1.00
●
P05 Group Input terminals
P05.00
HDI input
0: HDI is high pulse input. See P05.49~P05.54
1: HDI is switch input
0 ◎
P05.01
S1 terminal
function
selection
0: No function
1: Forward rotation
2: Reverse rotation
3: 3-wire control
4: Forward jogging
5: Reverse jogging
6: Coast to stop
7: Fault reset
8: Operation pause
9: External fault input
10:Increasing frequency setting(UP)
11:Decreasing frequency setting(DOWN)
12:Cancel the frequency change setting
13:Shift between A setting and B setting
14:Shift between combination setting and A
setting
15:Shift between combination setting and B
setting
16:Multi-step speed terminal 1
17:Multi-step speed terminal 2
18:Multi-step speed terminal 3
19:Multi- step speed terminal 4
20:Multi- step speed pause
21:ACC/DEC time option 1
1 ◎
P05.02
S2 terminal
function
selection
4 ◎
P05.03
S3 terminal
function
selection
7 ◎
P05.04
S4 terminal
function
selection
0 ◎
P05.05
S5 terminal
function
selection
0 ◎
P05.06
S6 terminal
function
selection
0 ◎
P05.07
S7 terminal
function
selection
0 ◎
P05.08
S8 terminal
function
selection
0 ◎
