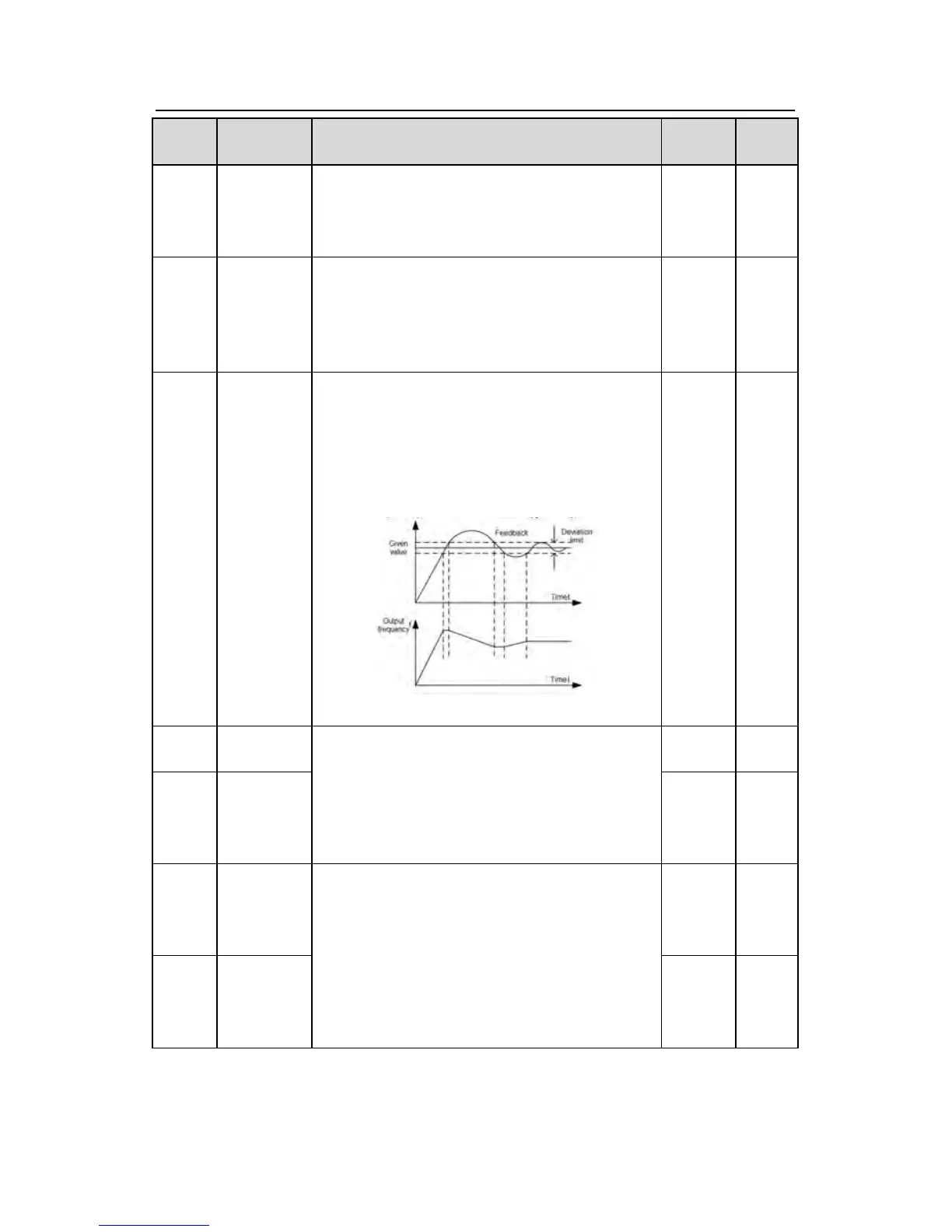

Goodrive200A inverters Function parameters
78
Function
code
Name Detailed instruction of parameters
Default
value
Modify
the Max. Frequency (P00.03) or the Max. Voltage
(P04.31). Longer the integral time, stronger is the
adjusting.
Setting range: 0.00~10.00s
P09.07
Sampling
cycle(T)
This parameter means the sampling cycle of the
feedback. The modulator calculates in each
sampling cycle. The longer the sapling cycle is,
the slower the response is.
Setting range: 0.000~10.000s
0.100s
○
P09.08
PID control
deviation limit
The output of PID system is relative to the
maximum deviation of the close loop reference.
As shown in the diagram below, PID adjustor
stops to work during the deviation limit. Set the
function properly to adjust the accuracy and
stability of the system.
Setting range:0.0~100.0%
0.0% ○
P09.09
O
utput upper
limit of PID
These parameters are used to set the upper and
lower limit of the PID adjustor output.
100.0 % corresponds to Max. frequency or the
Max. voltage of ( P04.31)
Setting range of P09.09: P09.10~100.0%
Setting range of P09.10: -100.0%~P09.09
100.0%
○
P09.10
O
utput lower
limit of PID
0.0% ○
P09.11
Feedback
offline
detection
value
Set the PID feedback offline detection value,
when the detection value is smaller than or equal
to the feedback offline detection value, and the
lasting time exceeds the set value in P09.12, the
inverter will report “PID feedback offline fault” and
the keypad will display PIDE.
0.0% ○
P09.12
Feedback
offline
detection
time
1.0s ○
