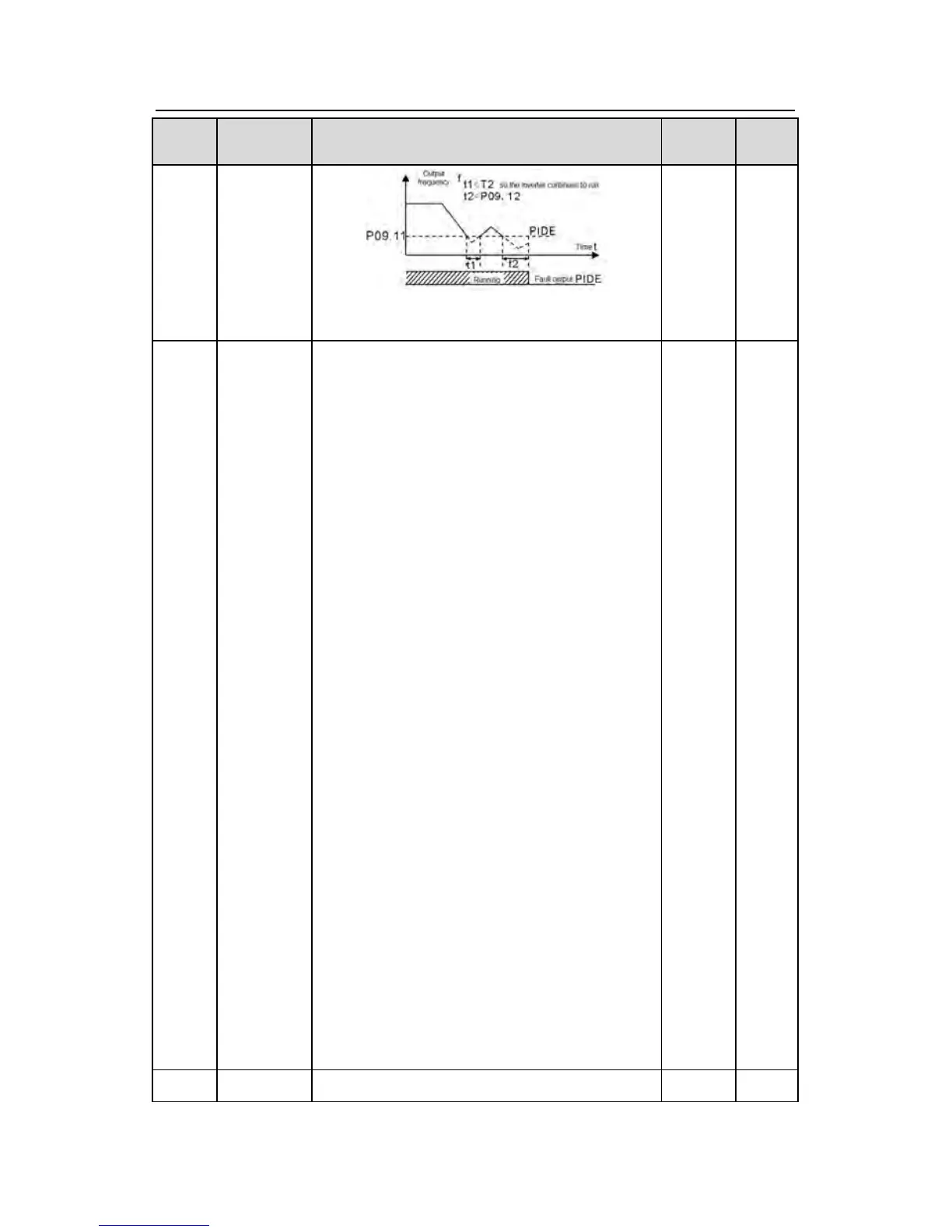

Goodrive200A inverters Function parameters
79
Function
code
Name Detailed instruction of parameters
Default
value
Modify
Setting range of P09.11: 0.0~100.0%
Setting range of P09.12: 0.0~3600.0s
P09.13
PID
adjustment
0x0000~0x1111
LED ones:
0: Keep on integral adjustment when the
frequency achieves the upper and low limit; the
integration shows the change between the
reference and the feedback unless it reaches the
internal integral limit. When the trend between
the reference and the feedback changes, it
needs more time to offset the impact of
continuous working and the integration will
change with the trend.
1: Stop integral adjustment when the frequency
achieves the upper and low limit. If the integration
keeps stable, and the trend between the
reference and the feedback changes, the
integration will change with the trend quickly.
LED tens: P00.08 is 0
0: The same with the setting direction; if the
output of PID adjustment is different from the
current running direction, the internal will output 0
forcedly.
1:Opposite to the setting direction
LED hundreds: P00.08 is 0
0: Limit to the maximum frequency
1: Limit to frequency A
LED thousands:
0:A+B frequency, the buffer of A frequency is
invalid
1:A+B frequency, the buffer of A frequency is
valid
ACC/DEC is determined by ACC time 4 of
P08.04
0x0001
P09.14
Proportional
0.00~100.00 1.00
