Goodrive200A inverters Function parameters
80
Function
code
Name Detailed instruction of parameters
Default
value
Modify
gain at low
frequency
(Kp)
P09.15
PID
command of
ACC/DEC
time
0.0~1000.0s 0.0s ○
P09.16
PID output
filter time
0.000~10.000s 0.000s
○
P10 Group Simple PLC and multi-step speed control
P10.00
Simple PLC
0: Stop after running once. The inverter has to be
commanded again after finishing a cycle.
1: Run at the final value after running once. After
finish a signal, the inverter will keep the running
frequency and direction of the last run.
2: Cycle running. The inverter will keep on
running until receiving a stop command and then,
the system will stop.
0 ○
P10.01
Simple PLC
memory
0: Power loss without memory
1:Power loss memory；PLC record the running
step and frequency when power loss.
0 ○
P10.02
Multi-step
speed 0
100.0% of the frequency setting corresponds to
the Max. frequency P00.03.

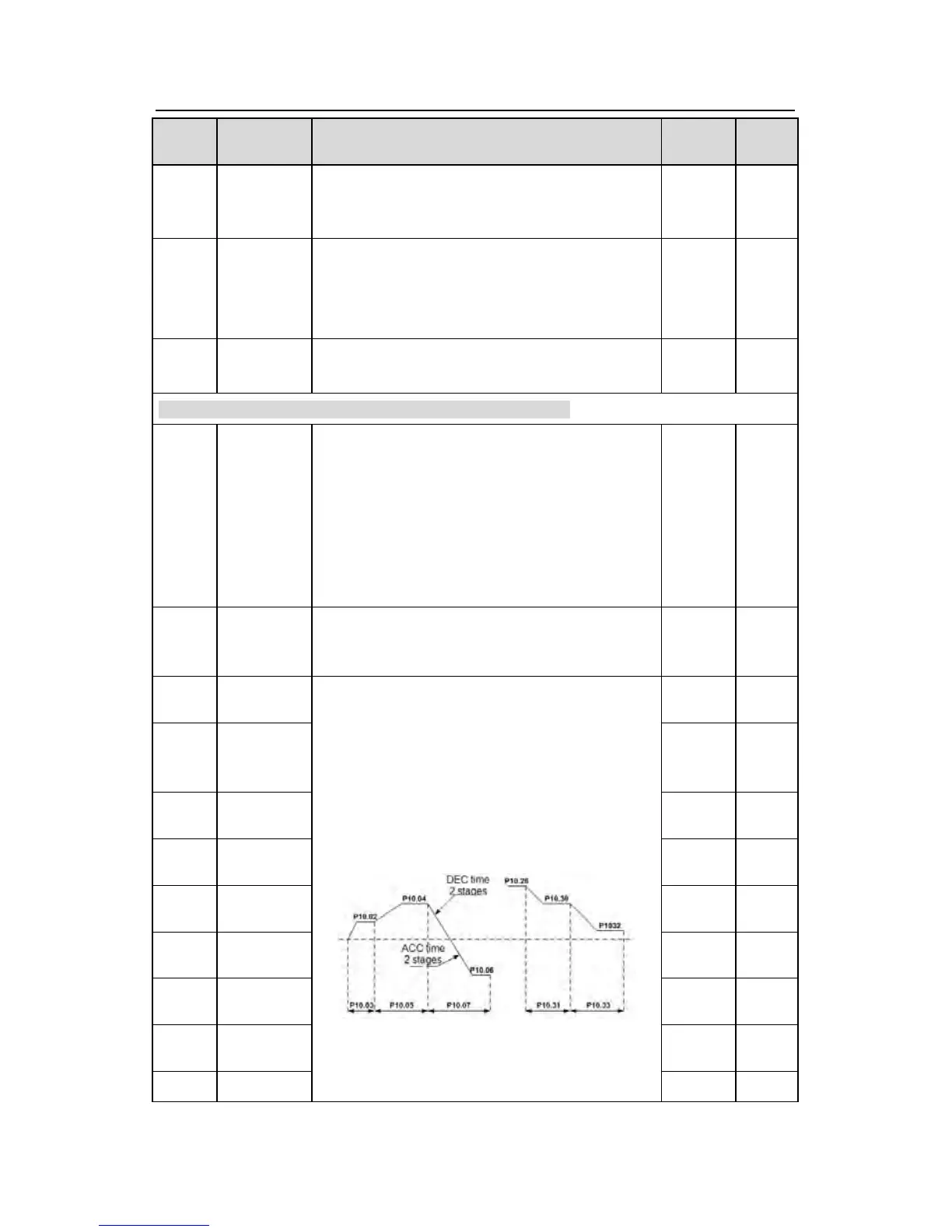

When selecting simple PLC running, set
P10.02~P10.33 to define the running frequency
and direction of all steps.
Note: The symbol of multi-step determines the
running direction of simple PLC. The negative
value means reverse rotation.
Multi-step speeds are in the range of --f
max
~f
max
and it can be set continuously.
Goodrive200A series inverters can set 16 steps
0.0% ○
P10.03
The running
time of step
0
0.0s ○
P10.04
Multi-step
speed 1
0.0% ○
P10.05
The running
time of step
1
0.0s ○
P10.06
Multi-step
speed 2
0.0% ○
P10.07
The running
time of step
2
0.0s ○
P10.08
Multi-step
speed 3
0.0% ○
P10.09
The running
time of step
3
0.0s ○
P10.10
Multi-step 0.0% ○
