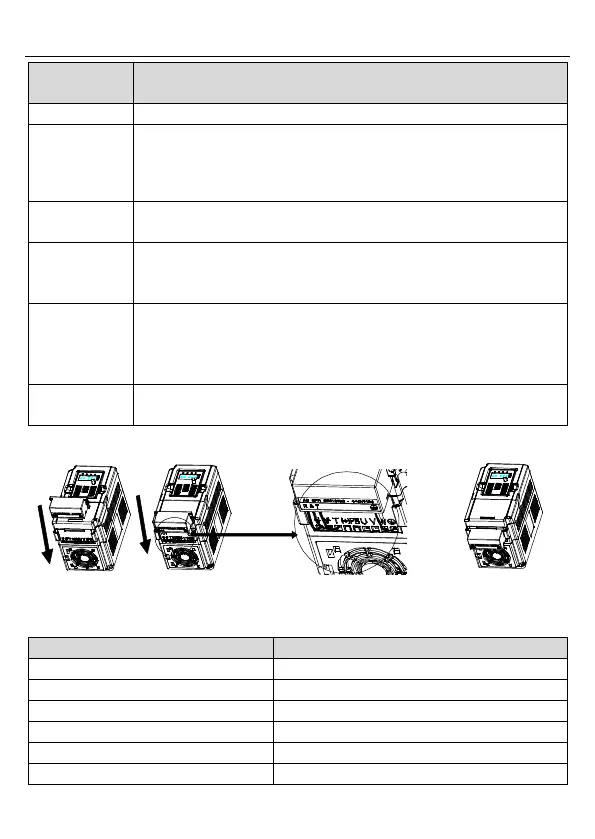

INVT Goodrive10 Series User Manual

Goodrive10 Series Mini VFD Optional peripheral accessories
-114-
Field
identifier
Field description
L: Output filter
C
Voltage class
S2: AC 1PH 220V (-15%)–240V (+10%)
02: AC 3PH 220V (-15%)–240V (+10%)
04: AC 3PH 380V (-15%)–440V (+10%)
D
3-digit development serial number. For example, 003 indicates the serial
number of C3 filters in development.
E
Filter performance
L: General
H: High-performance
F
Filter application environment
A: Environment Category I (IEC61800-3), C1 (EN 61800-3)
B: Environment Category I (IEC61800-3), C2 (EN 61800-3)
C: Environment Category II (IEC61800-3), C3 (EN 61800-3)
G
Lot No.
G: Special for external C3 filter
C.6.2 C3 filter model selection
Note: If C3 input filter is selected, C3 input filter is connected in parallel to input end of the
VFD.
VFD model
Input filter
GD10-0R2G-S2-B
FLT-PS2005L-C-G
GD10-0R4G-S2-B
FLT-PS2005L-C-G
GD10-0R7G-S2-B
FLT-PS2005L-C-G
GD10-1R5G-S2-B
FLT-PS2010L-C-G
GD10-2R2G-S2-B
FLT-PS2010L-C-G
GD10-0R2G-2-B
FLT-P04008L-C-G
