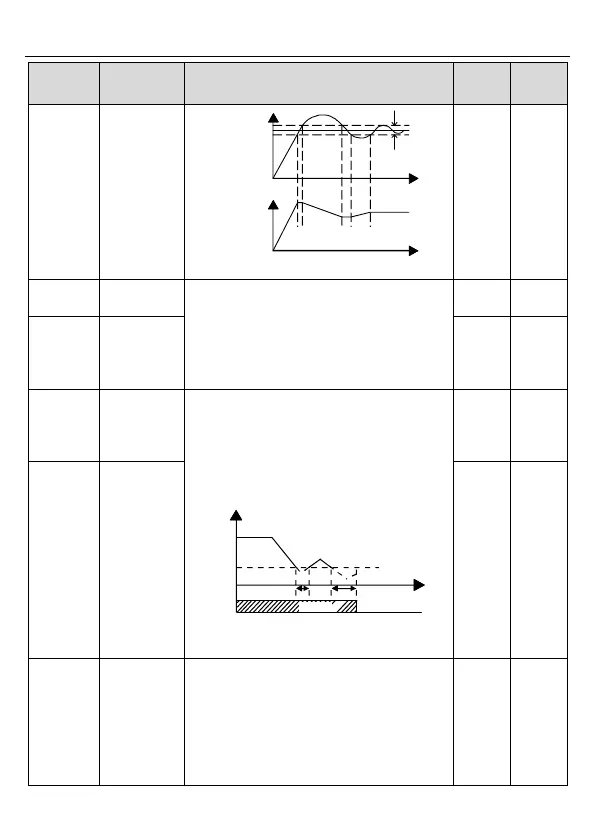

INVT Goodrive10 Series User Manual

Goodrive10 Series Mini VFD Function parameters
-65-
Function
code
Name
Description
Default
Modify
Output frequency
T
T
Feedback value
Bias limit
Reference value
Setting range:0.0–100.0%
P09.09
Upper limit of
PID output
The two function codes are used to set the
upper /lower limit value of PID regulator.
100.0% corresponds to max. output
frequency (P00.03).
Setting range of P09.09: P09.10–100.0%
Setting range of P09.10: -100.0%–P09.09
100.0%
○
P09.10
Lower limit of
PID output
0.0%
○
P09.11
Feedback
offline
detection
value
Set the PID feedback offline detection value,
when the detection value is smaller than or
equal to the feedback offline detection value,
and the lasting time exceeds the set value in
P09.12, the VFD will report “PID feedback
offline fault” and the keypad will display PIDE.
T
Output frequency
t1
t2
P09.11
In running
Fault output PIDE
PIDE
t1 < t2, so the VFD
continues to run
t2 = P09.12
Setting range of P09.11: 0.0–100.0%
Setting range of P09.12: 0.0–3600.0s
0.0%
○
P09.12
Feedback
offline
detection
time
1.0s
○
P09.13
PID
adjustment
selection
0x00–0x11
LED ones:
0: Keep on integral adjustment when the
frequency achieves the upper and low limit;
the integration shows the change between the
reference and the feedback unless it reaches
the internal integral limit. When the trend
0x00
○
