INVT Goodrive10 Series User Manual

Goodrive10 Series Mini VFD Function parameters
-70-
Function
code
Name
Description
Default
Modify
0: Current limit invalid
1: Current limit is always valid
Setting range of P11.06: 50.0–200.0%
Setting range of P11.07: 0.00–50.00Hz/s
P11.08
Pre-alarm
selection
for
VFD/motor
OL/UL

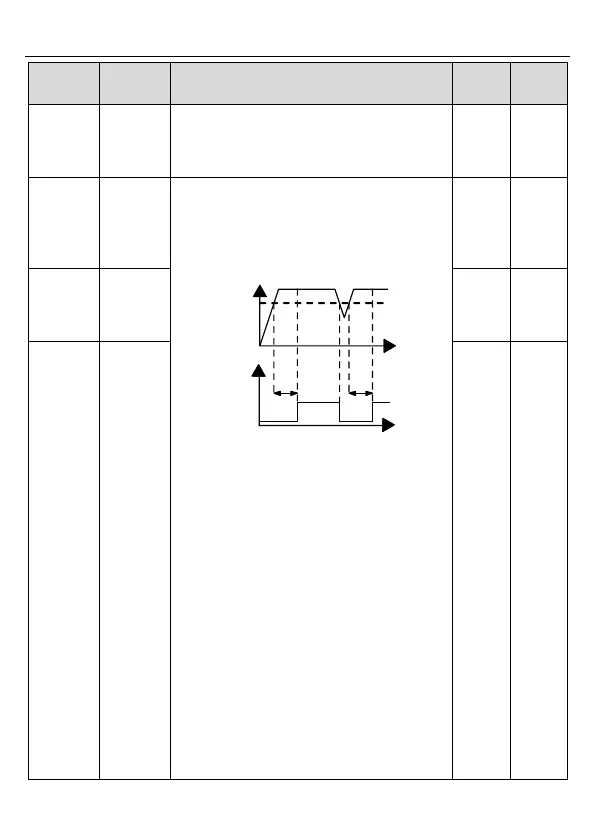

Overload pre-alarm signal will be outputted if the
output current of the VFD or motor is higher than
overload pre-alarm detection level (P11.09), and
the duration exceeds overload pre-alarm
detection time (P11.10).
Output current
Overload
pre-warning
point
T
T
Y, RO
Pre-warning
time
Pre-warning
time
Setting range of P11.08:
The function code is used to enable and define
the overload pre-alarm of the VFD/motor.
Setting range: 0x000–0x131
LED ones:
0: Motor overload/underload pre-alarm, relative
to rated motor current;
1: VFD overload/underload pre-alarm, relative to
rated VFD current.
LED tens:
0: The VFD continues running after
overload/underload alarm;
1: The VFD continues running after underload
alarm, and stops running after overload fault;
2: The VFD continues running after overload
alarm, and stops running after underload fault;
3: The VFD stops running after
0x000
○
P11.09
Overload
pre-alarm
detection
level
150%
○
P11.10
Overload
pre-alarm
detection
time
1.0s
○
