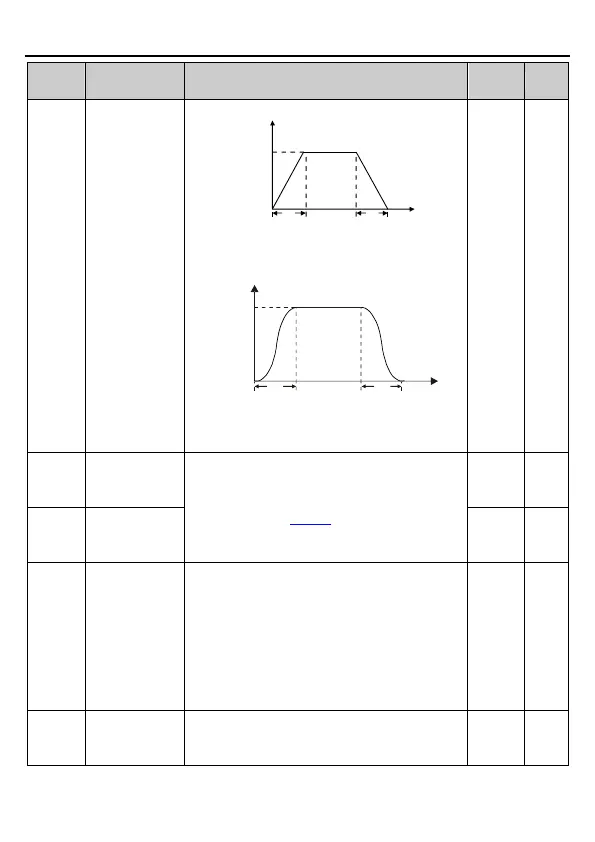

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-37-
Function
code
Name
Description
Default
value
Modify
linearly.
fmax
Output frequency
t1 t2
T
1: S curve
The output frequency increases or decreases
according to the S curve.
fmax
Output frequency f
t1
t2
Timet
fmax
t1
t2
Output frequency f
Time t
The S curve is generally applied to elevators,
conveyors, and other application scenarios
where smoother start or stop is required.
P01.06
ACC time at the
S-curve start
phase
Setting range: 0.050.0s
Note: Valid when P01.05 is set to 1.
0.1s
P01.07
DEC time at the
S-curve end
phase
0.1s
P01.08
Stop mode
0: Decelerate to stop. After the stop command
becomes valid, the VFD decelerates to reduce
the output frequency during the set time. When
the frequency decreases to 0Hz, the VFD stops.
1: Coast to stop. After the stop command
becomes valid, the VFD ceases the output
immediately. And the load coasts to stop at the
mechanical inertia.
0
P01.09
Starting
frequency of DC
braking while
Starting frequency of DC braking while stop:
Start DC braking for stop when running
0.00Hz
