INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-38-

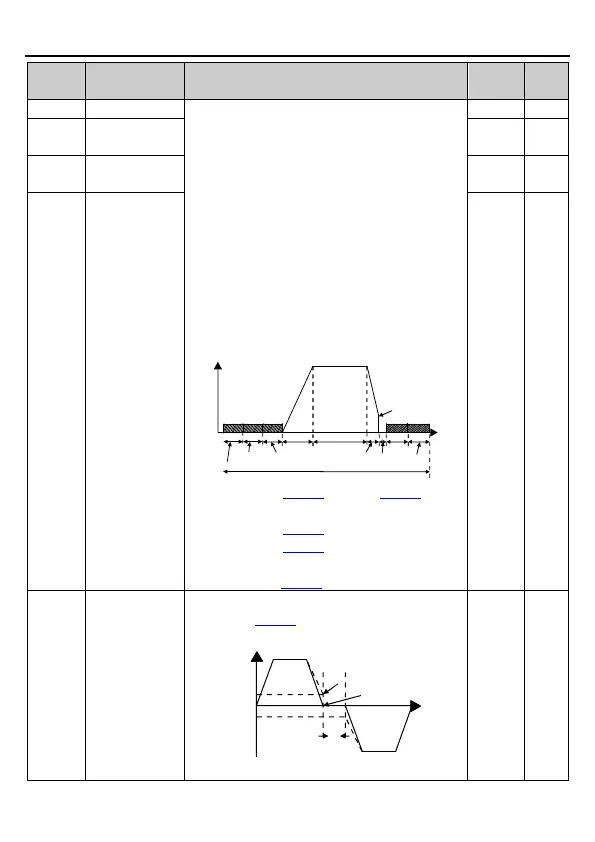

Function
code
Name
Description
Default
value
Modify
stop
frequency reaches the starting frequency
determined by P01.09.
Wait time before DC braking: The VFD blocks
the output before starting DC braking. After this
wait time, the DC braking will be started so as to
prevent over-current fault caused by DC braking
at high speed.
DC braking current at stop: The value of P01.11
is the percentage of rated current of VFD. The
bigger the DC braking current is, the greater the
braking torque is.
DC braking time at stop: It indicates the retention
time of DC braking. If the time is 0, the DC
braking is invalid, and the VFD will coast to stop.
P01.04
ACC
P1314.
P0123.
Constant
speed
In running
DEC
P0110.
P1315.
P01.12
P01.09
t
Setting range of P01.09: 0.00Hz–P00.03 (Max.
output frequency)
Setting range of P01.10: 0.00–50.00s
Setting range of P01.11: 0.0–100.0% (rated
current peak of the VFD)
Setting range of P01.12: 0.00–50.00s
P01.10
Wait time before
DC braking
0.00s
○
P01.11
DC braking
current at stop
0.0%
○
P01.12
DC braking time
at stop
0.00s
○
P01.13
FWD/REV
running
deadzone time
This function code indicates the transition time
specified in P01.14 during FWD/REV rotation
switching.
Output frequency
FWD
REV
T
Starting
frequency
Shift after the
zero frequency
Shift after the
starting frequency
Deadzone
time
Setting range: 0.0–3600.0s
0.0s
○
