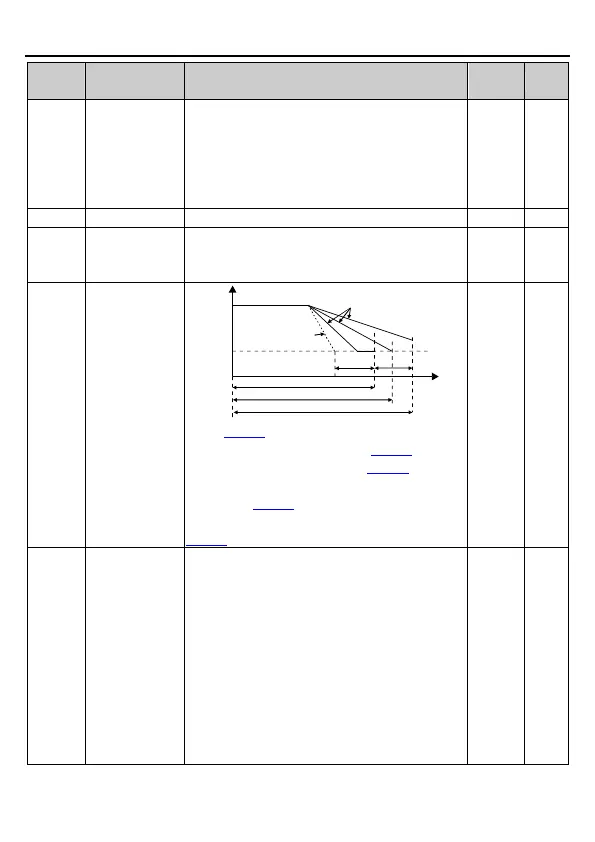

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-39-
Function
code
Name
Description
Default
value
Modify
P01.14
FWD/REV
running
switching mode
This function code indicates the mode of
switching between FWD and REV rotations.
0: Switch at zero frequency
1: Switch at the starting frequency
2: Switch after the speed reaches the stop speed
with a delay
1
P01.15
Stop speed
0.00100.00Hz
0.50Hz
P01.16
Stop speed
detection mode
0: Detect at the set speed
1: Detect at the feedback speed (valid for vector
control only)
1
P01.17
Feedback speed
detection time
T
Stop speed
A
Ramp reference
frequency
Output frequency
Frequency
P01.24 P01.17
B
C
Running A
Running B
Running C
When P01.16=1, the actual output frequency of
the VFD is less than or equal to P01.15 and is
detected during the time set by P01.17, the VFD
will stop; otherwise, the VFD stops within the
time set by P01.24.
Setting range: 0.00100.00s (valid only when
P01.16=1)
0.50s
P01.18
Terminal based
running
command
protection at
power-on
When the channel of running commands is
terminal control, the system will detect the state
of the running terminal during powering on.
0: The terminal running command is invalid when
powering on. Even the running command is
detected to be valid during powering on, the VFD
does not run and it keeps the protection state
until the running command is canceled and
enabled again.
1: The terminal running command is valid when
powering on. If the running command is detected
to be valid during powering on, the VFD is
0
