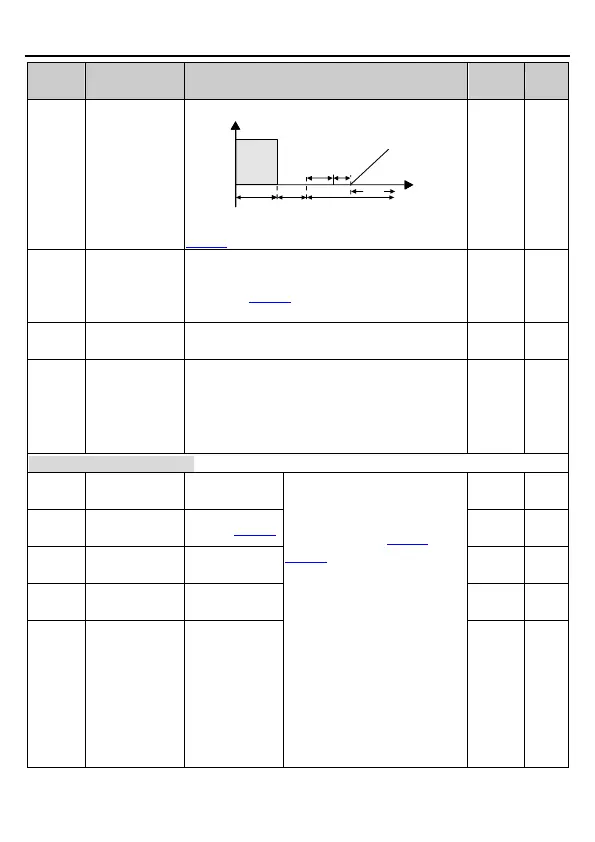

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-41-
Function
code
Name
Description
Default
value
Modify
power outage
re-powered on.
Output frequency
Running
Power off
Power on
Running
t
t1 t2
t1=P01.22
t2=P01.23
Setting range: 0.0–3600.0s (valid when
P01.21=1)
P01.23
Restart delay
After a VFD running command is given, the VFD
is in standby state and restarts with the delay
defined by P01.23 to implement brake release.
Setting range: 0.0–60.0s
0.0s
○
P01.24
Stop speed
delay
Setting range: 0.0–100.0 s
0.0s
○
P01.25
0Hz output
This function code indicates the 0Hz output of
the VFD.
0: Output without voltage
1: Output with voltage
2: Output with the DC braking current at stop
0
○
P02 Parameters of motor 1
P02.01
Rated power of
AM
0.1–3000.0kW
Parameters of the controlled
AM.
To ensure the control
performance, set P02.01–
P02.05 correctly according to
the information on the
nameplate of the AM.
Goodrive18 series VFD
provides the parameter
autotuning function. Whether
parameter autotuning can be
performed properly depends on
the settings of the motor
nameplate parameters.
In addition, you need to
configure a motor based on the
Model
depended
◎
P02.02
Rated frequency
of AM
0.01Hz–P00.03
50.00Hz
◎
P02.03
Rated speed of
AM
1–36000rpm
Model
depended
◎
P02.04
Rated voltage of
AM
0–1200V
Model
depended
◎
P02.05
Rated current of
AM
0.8–6000.0A
Model
depended
◎
