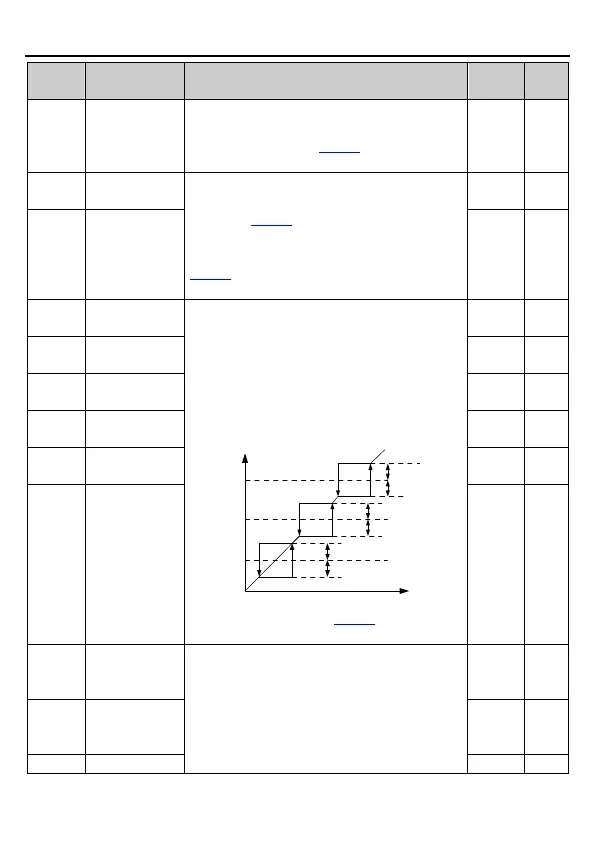

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-70-
Function
code
Name
Description
Default
value
Modify
P08.06
Running
frequency of
jogging
This function code is used to define the
reference frequency during jogging.
Setting range: 0.00HzP00.03 (Max. output
frequency)
5.00Hz
P08.07
ACC time of
jogging
The jogging ACC time means the time needed if
the VFD runs from 0 Hz to the max. output
frequency (P00.03).
The jogging DEC time means the time needed if
the VFD goes from the max. output frequency
(P00.03) to 0 Hz.
Setting range: 0.03600.0s
Model
depended
P08.08
DEC time of
jogging
Model
depended
P08.09
Jump frequency
1
When the set frequency is within the range of
jump frequency, the VFD will run at the boundary
of jump frequency.
The VFD can avoid mechanical resonance point
by setting the jump frequency, and three jump
frequency points can be set. If the jump
frequency points are set to 0, this function is
invalid.
Set frequency f
Jump
frequency 3
Jump
frequency 2
Jump
frequency 1
½* jump frequency
amplitude 3
½* jump frequency
amplitude 3
½* jump frequency
amplitude 2
½* jump frequency
amplitude 2
½* jump frequency
amplitude 1
½* jump frequency
amplitude 1
Time t
Setting range: 0.00HzP00.03 (Max. output
frequency)
0.00Hz
P08.10
Jump frequency
amplitude 1
0.00Hz
P08.11
Jump frequency
2
0.00Hz
P08.12
Jump frequency
amplitude 2
0.00Hz
P08.13
Jump frequency
3
0.00Hz
P08.14
Jump frequency
amplitude 3
0.00Hz
P08.15
Amplitude of
wobbling
frequency
The function codes apply to the industries where
traverse and convolution are required such as
textile and chemical fiber.
The traverse function means that the output
frequency of the VFD is fluctuated with the set
frequency as its center. The route of the running
0.0%
P08.16
Amplitude of
sudden jump
frequency
0.0%
P08.17
Rise time of
5.0s
