nano3G AP Installation Manual nano3G AP Hardware Installation
N3G_INST_300 v8.1 for N3G_2.0.5 © ip.access Limited 2011 Page 46

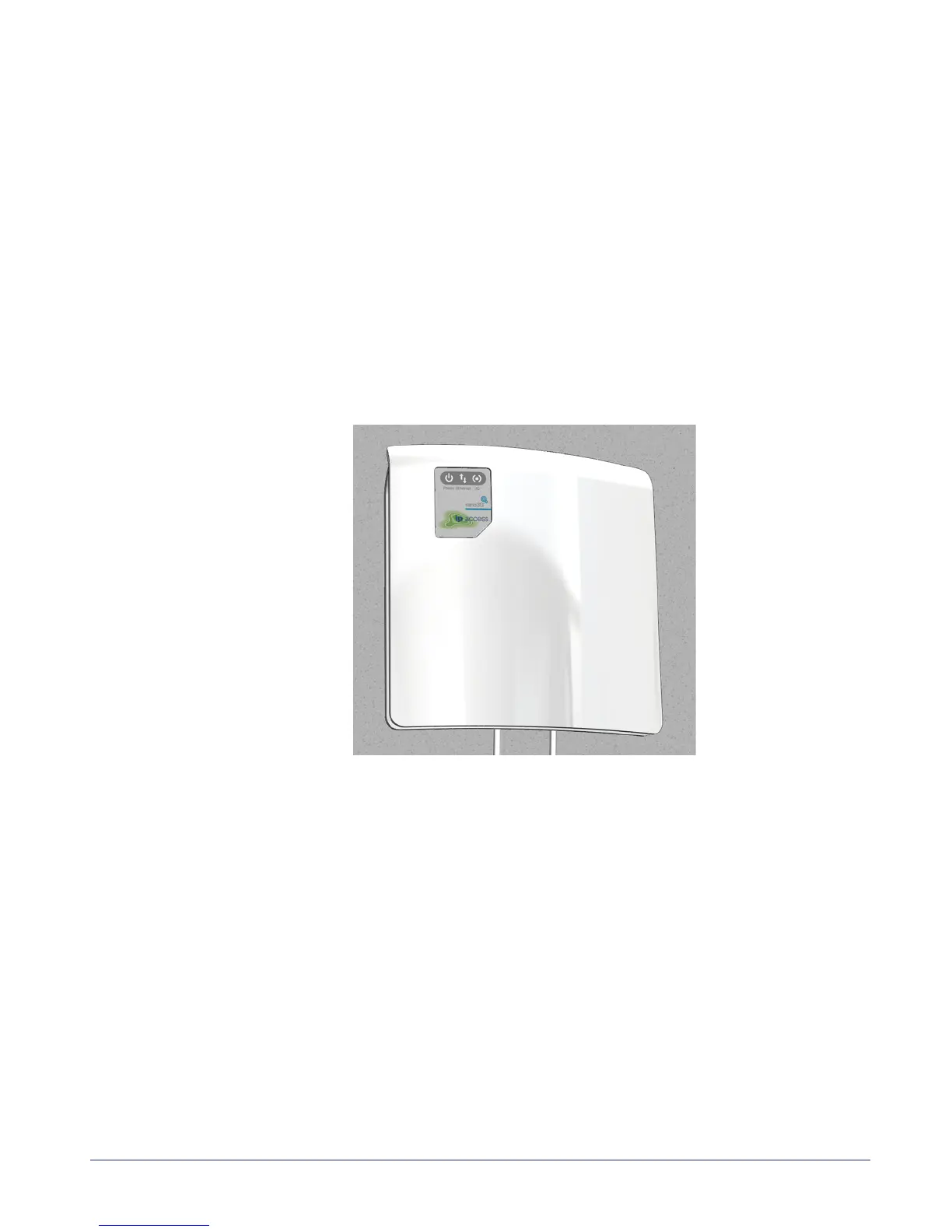

Mount the nano3G S4 AP directly onto the wall
1) Drill two holes 70mm (2.76in) apart vertically for the two screws.
2) Insert wall plugs (if required) and secure the screws leaving approximately 3mm
(0.12in) clearance between the screw heads and the wall.
3) Plug the Ethernet cable and the power cable into the AP.
Note: If using the POE splitter when wall mounting the AP, it is recommended to
mount the AP directly on the POE splitter, as in the following section. In
some cases, it may be necessary to mount the AP and the POE splitter on
the wall separately to minimise how far the AP projects from the wall. In
this case, position the POE splitter below the AP where the 100mm
cables will reach the AP.
4) Slide the AP onto the 2 screws.
