Ip.Access nano3G S8 AP User Manual

nano3G AP Installation Manual nano3G AP Hardware Installation
N3G_INST_300 v8.1 for N3G_2.0.5 © ip.access Limited 2011 Page 47

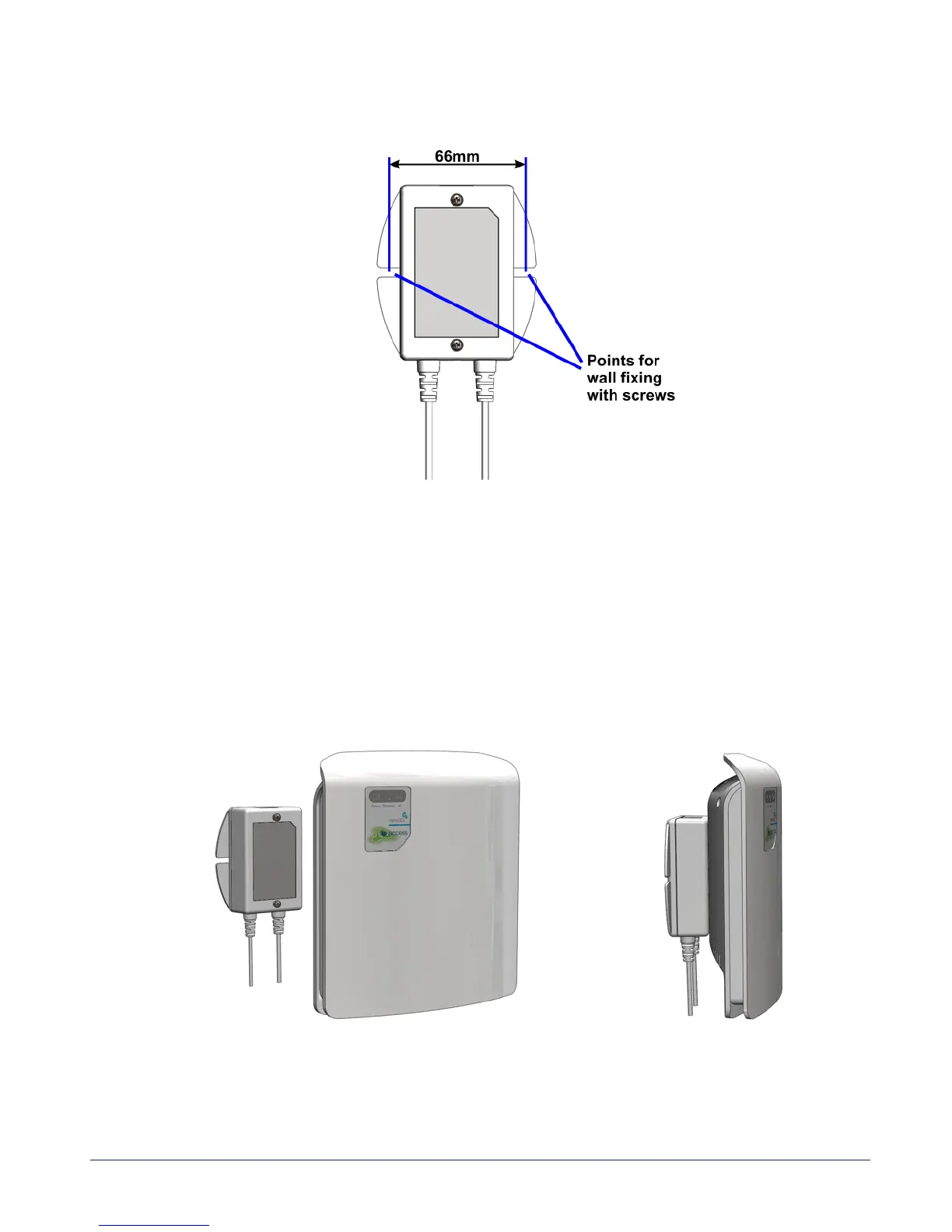

Mount the nano3G S4 AP onto the splitter unit on the wall
1) Drill two holes 66mm (2.6in) apart horizontally for the two screws.
2) Secure the splitter unit to the wall using two screws.
Ensure that the Ethernet socket is at the top.
3) Plug the Ethernet cable into the top of the splitter unit.
4) Plug the captive Ethernet cable and the power cable from the splitter unit into the
AP.
5) Mount the AP onto the 2 screws that are already fixed onto the splitter unit.
