iPECS eMG80
Hardware Description and Installation Manual Issue 1.3
6
2.3 System Connection Diagram

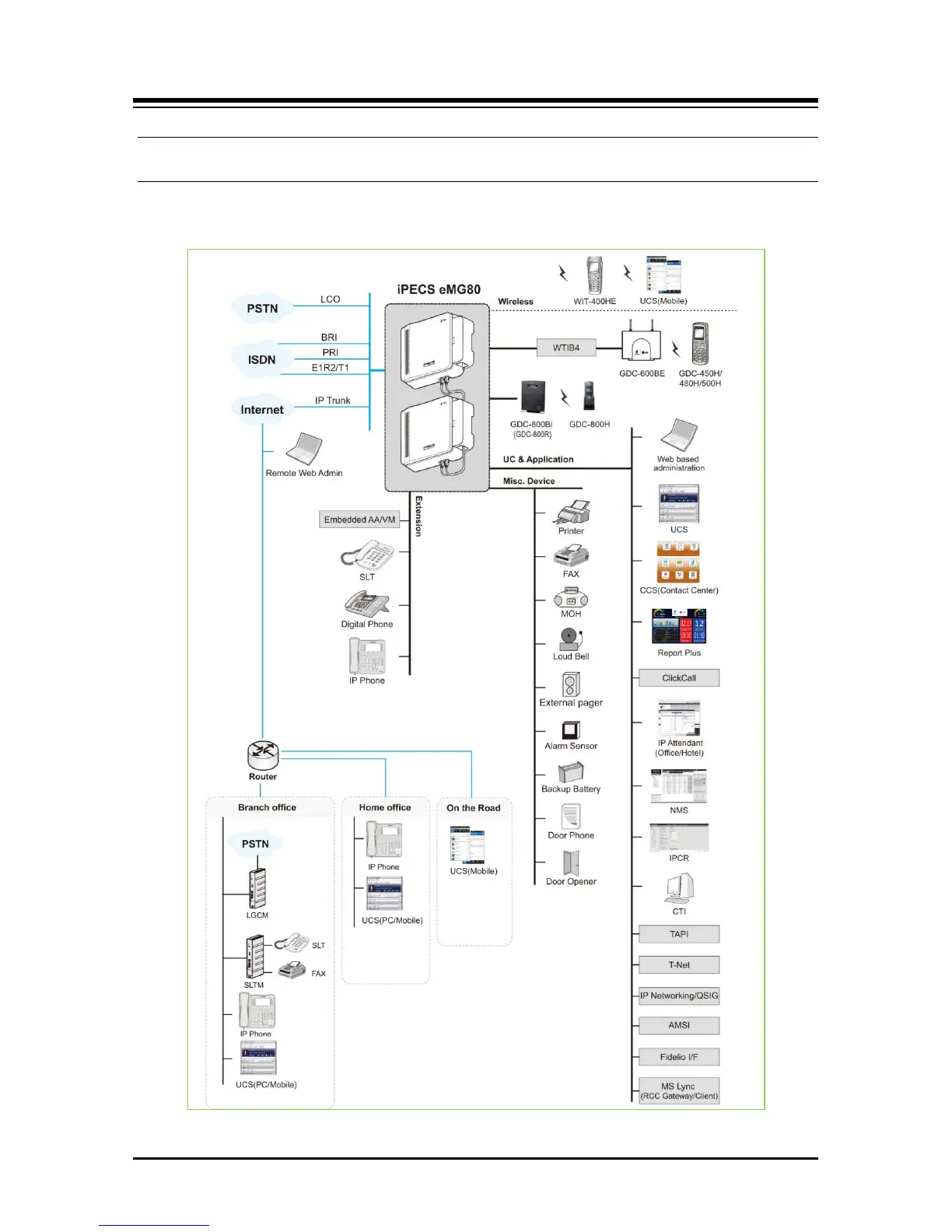

The following Figure represents the interconnections available with iPECS eMG80 including
external network, terminals, miscellaneous, and admin interfaces.
Figure 2.2-3 System Connection Diagram
To Next Page
