iPECS eMG80 - BH104 (1 BRI and 4 Hybrid Interface Board)

iPECS eMG80
Hardware Description and Installation Manual Issue 1.3
45
Table 4.7.3-2 CS416 LED Indications
LED Indications
LED Color Description
LD1 Blue Station port in use status
ON – A station port is in use
OFF – All station ports are idle
4.7.4 BH104 (1BRI and 4 Hybrid Interface Board)
The BH104 board has one (1) BRI (2B+D) and 4 Hybrid (DKT & SLT) interface ports. The
board, shown in
Description
Figure 4.7.4-1, can be installed on the CN1 connector of only the KSU.
There are no option boards for the BH104.
Multiple pole Dip-switches determine the operating mode ‘S’ or ‘T’ and termination.
The board is provided with two Standoffs that must be installed prior to mounting the board.
To install the board in the KSU, refer to Section 4.4.

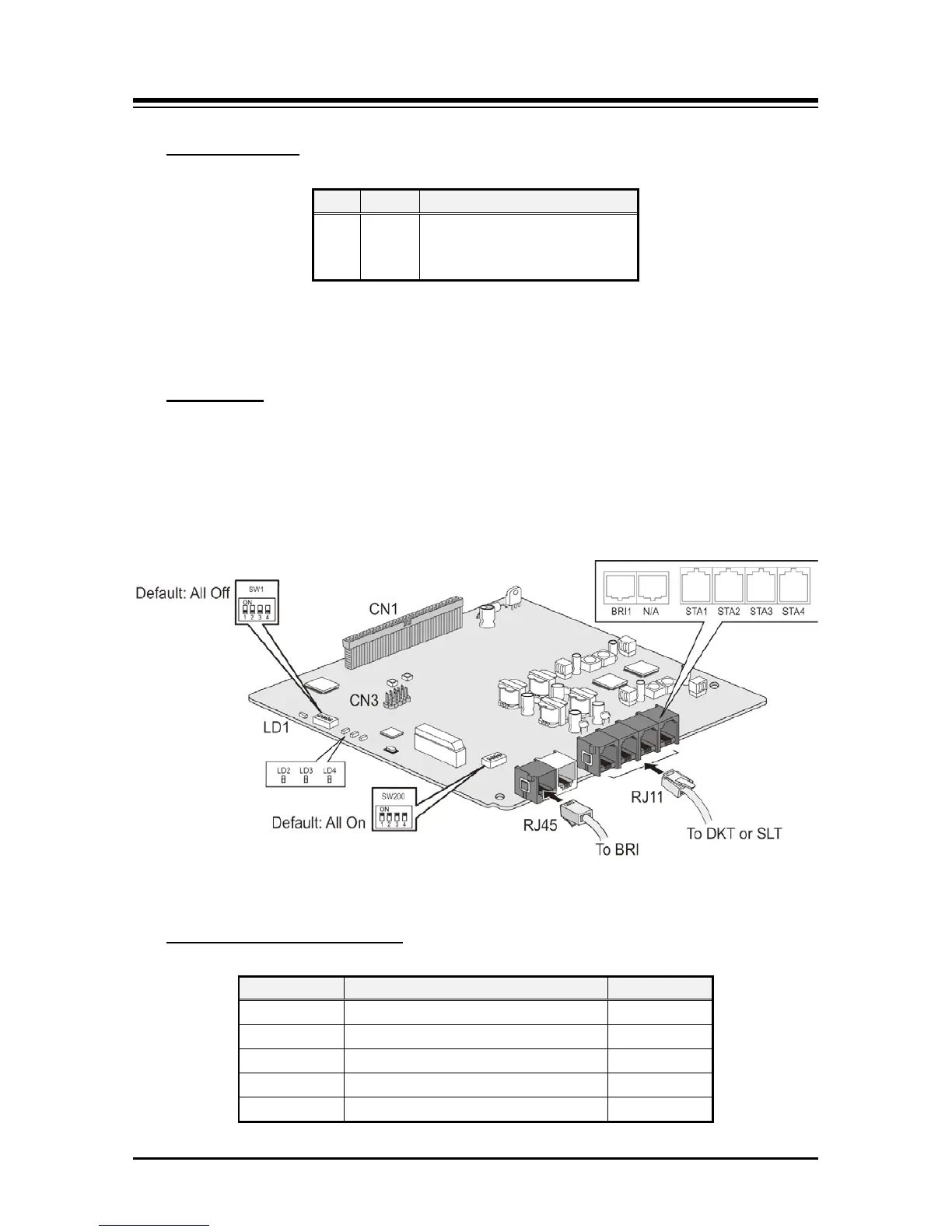

Figure 4.7.4-1 BH104
Table 4.7.4-1 Connector and Modular Jack Function
Connector and Modular jack
Connector
Functions
Remark
CN1 Connection to second Interface board 70 pins
CN2 Connection to CN1 connector of MBU 70 pins
CN3 CPLD JTAG for development 10 pins
MJ1 1 BRI (2 B+D) RJ45
MJ4 4 DKT or SLT line RJ11
