iPECS eMG80
Hardware Description and Installation Manual Issue 1.3
84
7.2 Terminal Cabling Distance
The figure 7.2-1 below indicates the wiring distance for Digital Key Telephones and Single
Line Telephones, and both must be wired with 22 or 24 AWG twisted pair Cat 3 or Cat 5 cable.
The wiring distance for IP phones is determined by the LAN and can be a maximum distance
of 100 meters (328 feet) from the LAN switch. The IP phones are wired using Cat 5 cable for
10/100 Base T LANs and Cat5E cable for 1000 Base T LANs.

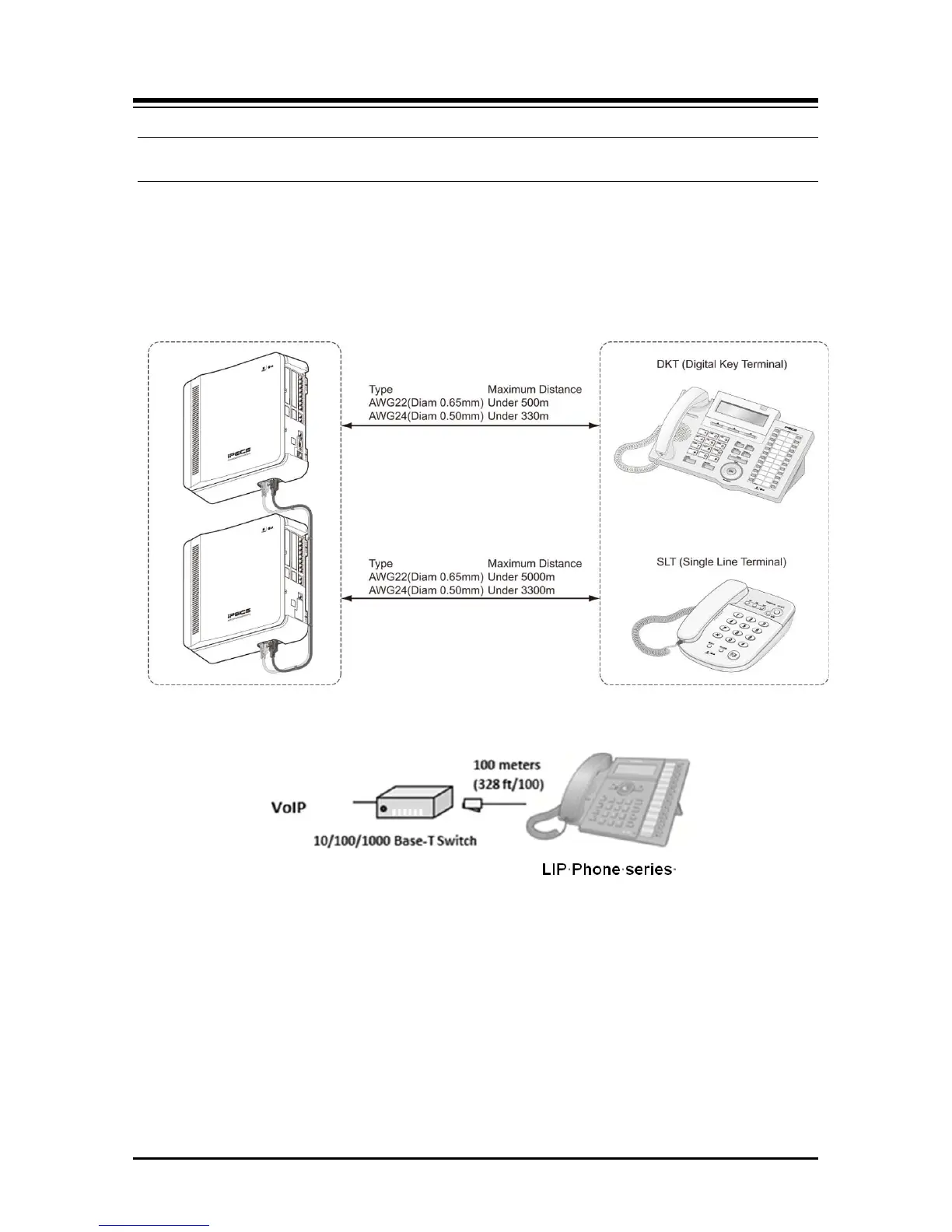

Figure 7.2-1 Terminal Wiring Distance
