iPECS eMG80 - HYB8 (Hybrid 8 Interface Board)

iPECS eMG80
Hardware Description and Installation Manual Issue 1.3
52
4.7.8 HYB8 (Hybrid 8 Interface Board)
The HYB8 board is shown in
Description
Figure 4.7.8-1 and has 8 Hybrid (DKT & SLT) interface
circuits. The board can be installed on the CN1 connector of a KSU or EKSU for expansion.
There are no optional daughter boards for the HYB8.
The board is provided with two Standoffs that must be installed prior to mounting the board.
To install the board in the KSU, refer to Section 4.4.

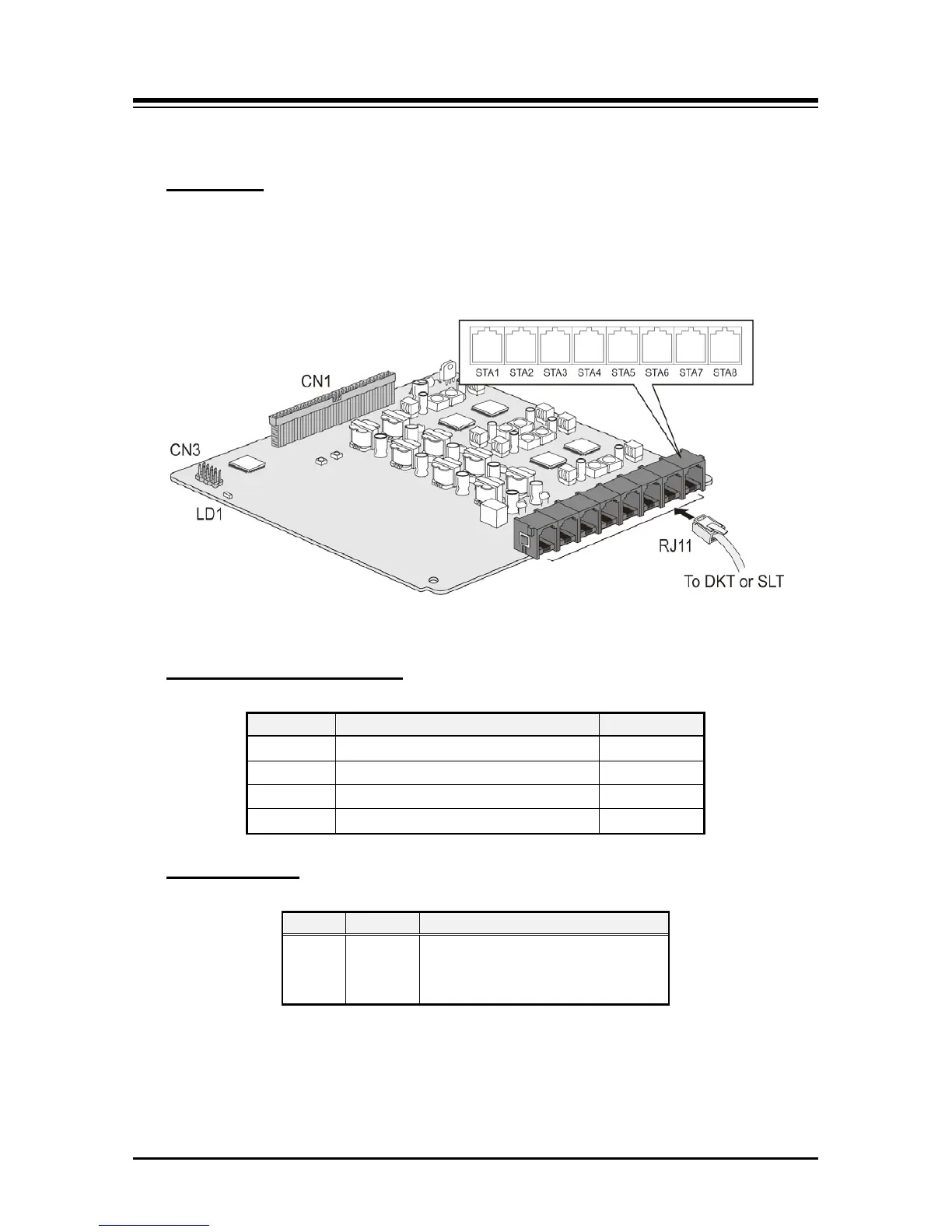

Figure 4.7.8-1 HYB8
Table 4.7.8-1 Connector and Modular Jack Function
Connector and Modular jack
Connector
Functions
Remark
CN1 Connection to second option board 70 pins
CN2
Connection to MBU CN1 connector
70 pins
CN3 CPLD JTAG for development 10 pins
MJ2 8 DKT or SLT line RJ11
Table 4.7.8-2 LED Indications
LED Indications
LED
Color
Description
LD1 Blue Station port in use status
ON: a station port is in use
OFF: All station ports are idle
