iPECS eMG80
Hardware Description and Installation Manual Issue 1.3
73

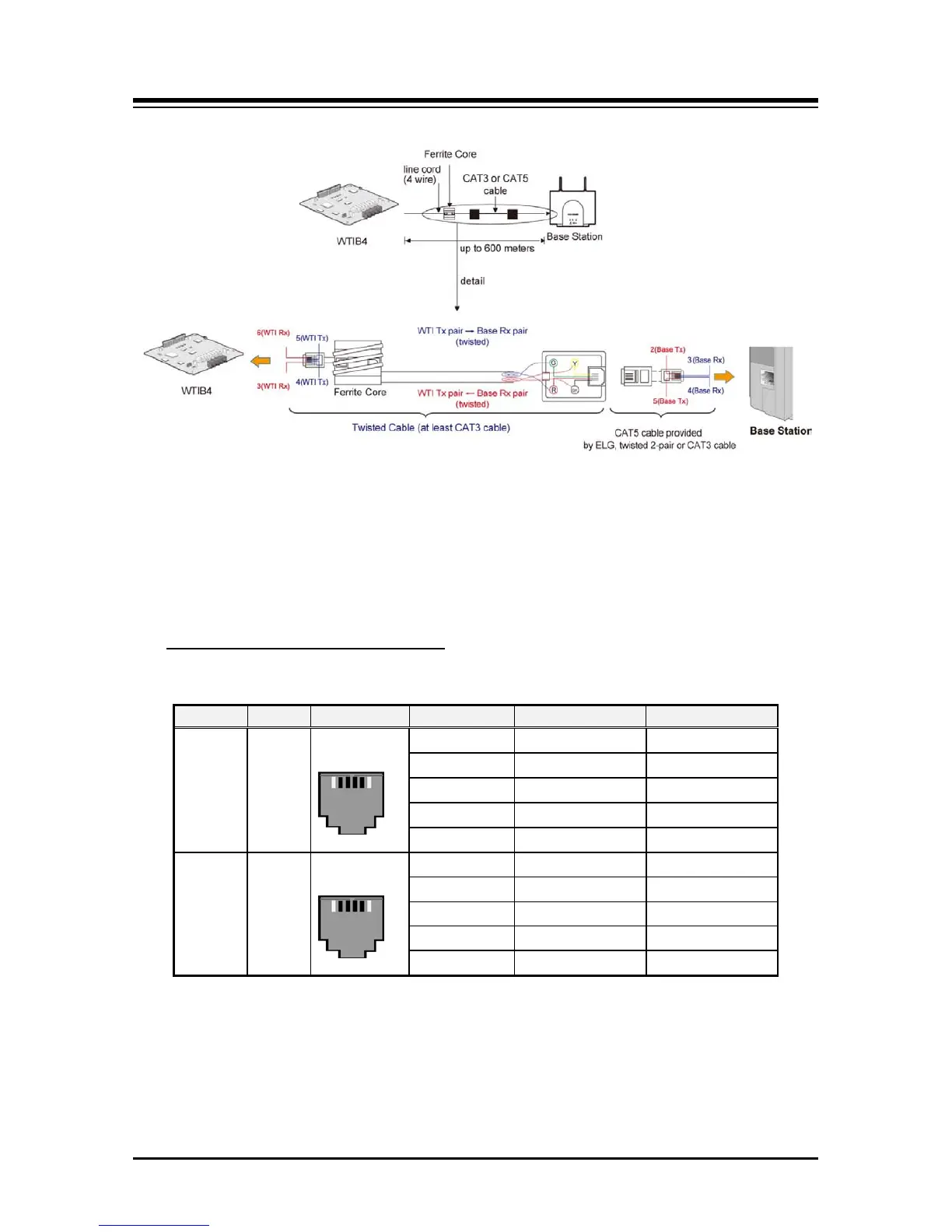

Figure 6.4.8-1 WTIB4 Wiring with Ferrite Core
CAUTION
All wiring between the WTIB4 and the GDC-600BE Base Station must use twisted pair
cable, use either Cat 3 or Cat 5 cabling. Use of untwisted pair wiring, even in short lengths
will cause faulty operation of the Base Station and the DECT handsets.
WTIB4 & GDC-600BE Connectors
Table 6.4.8-1 WTIB & GDC-600BE Modular Jack Wiring
Model
Label
Pin-out
Pin Number
Pin Assignment
Function
WTIB4
WTI1
to
WTI4
1, 6
Unused/reserved
2
RX (GND) Receive Data
3
TX (+30V)
Transmit Data
4
TX (+30v) Transmit Data
5
RX (GND) Receive Data
GDC-
600BE
MJ1
1, 6
Unused/reserved
2
Base TX (GND) Transmit Data
3
Base RX (+30V) Receive Data
4
Base RX (+30v) Receive Data
5
Base TX (GND) Transmit Data
1 6
1 6
