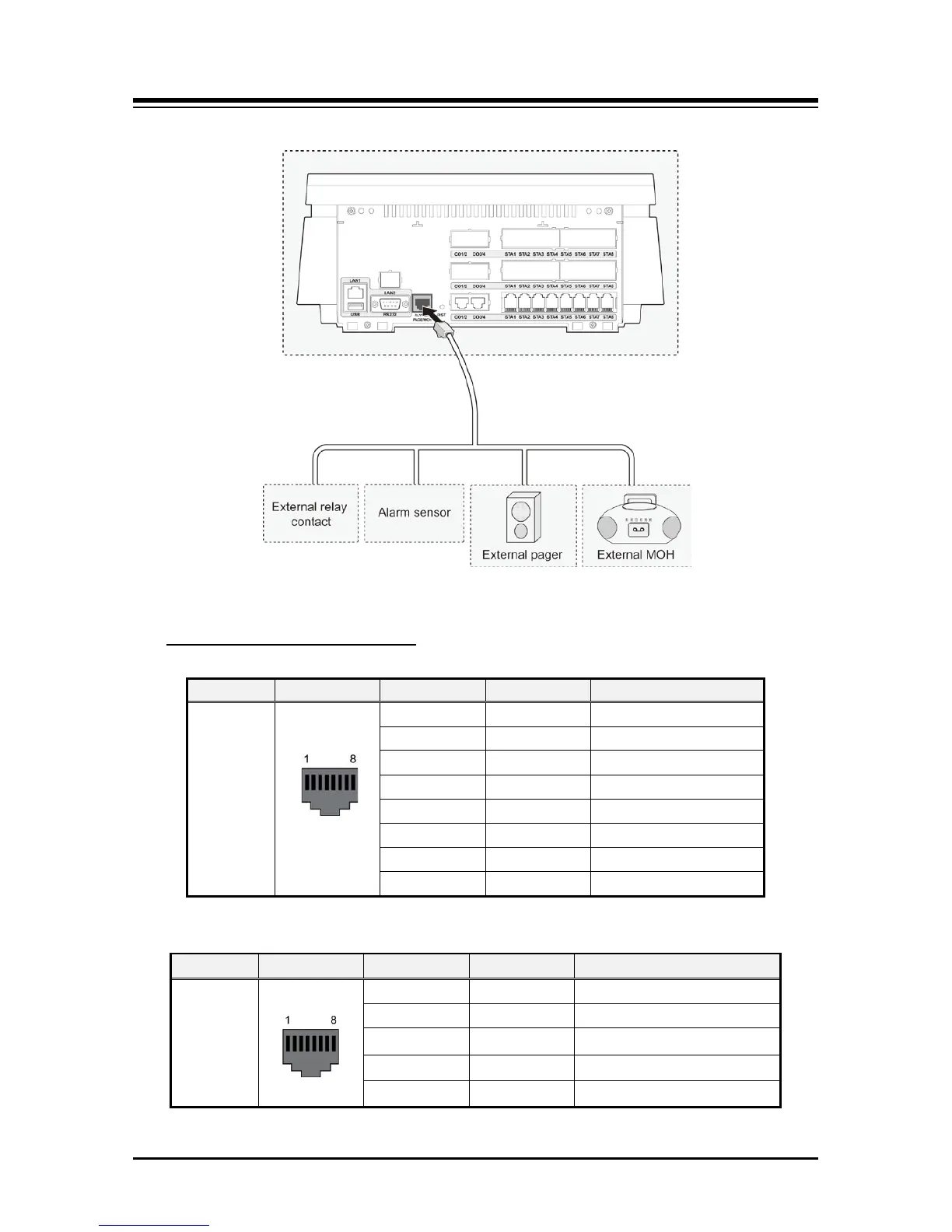

Figure 6.7-1 Miscellaneous Connections
Table 6.7-1 KSU Miscellaneous Connector MJ4 Wiring
Modular Jack Pin Assignment
Connector
Pin-out
Pin Number
Signal Name
Function
RJ45
1
RELAY_T Relay Contact Tip
2
RELAY_R Relay Contact Ring
3
ALARM_T Alarm Detection Tip
4
ALARM_R Alarm Detection Ring
5
EXTPAGE_T External Page Tip
6
EXTPAGE_R External Page Ring
7
EXTMOH_T External MOH Tip
8
EXTMOH_R External MOH Ring
Table 6.7-2 EKSU Miscellaneous Connector MJ4 Wiring
Connector Pin-out Pin Number Signal Name Function
RJ45
1
RELAY_T Relay Contact Tip
2
RELAY_R Relay Contact Ring
3
ALARM_T Alarm Detection Tip
4
ALARM_R Alarm Detection Ring
5 - 8
N/A
