2 Product Description
2.1 Modline 5 Sensors, Cable and Interface Accessories
The basic Modline 5 System consists of either a standard Sensor or Sensor with the Dirty Window
Detection option with an interconnecting cable and Terminal Strip Plate. Optional components include
the POI Power Supply/Signal Interface Box and the remote DPM Digital Meter operator interface.
2.1.1 Preliminary Inspection
The Modline 5 is delivered in plastic wrappings, cradled in foam inside rugged cartons. The Sensor and
any accessories you have ordered are shown on the packing list. The photograph below identifies
Modline 5 system components. See Section 3 Sensor Installation, page 22 to identify mounting, air
purging, water cooling and other mechanical accessories.

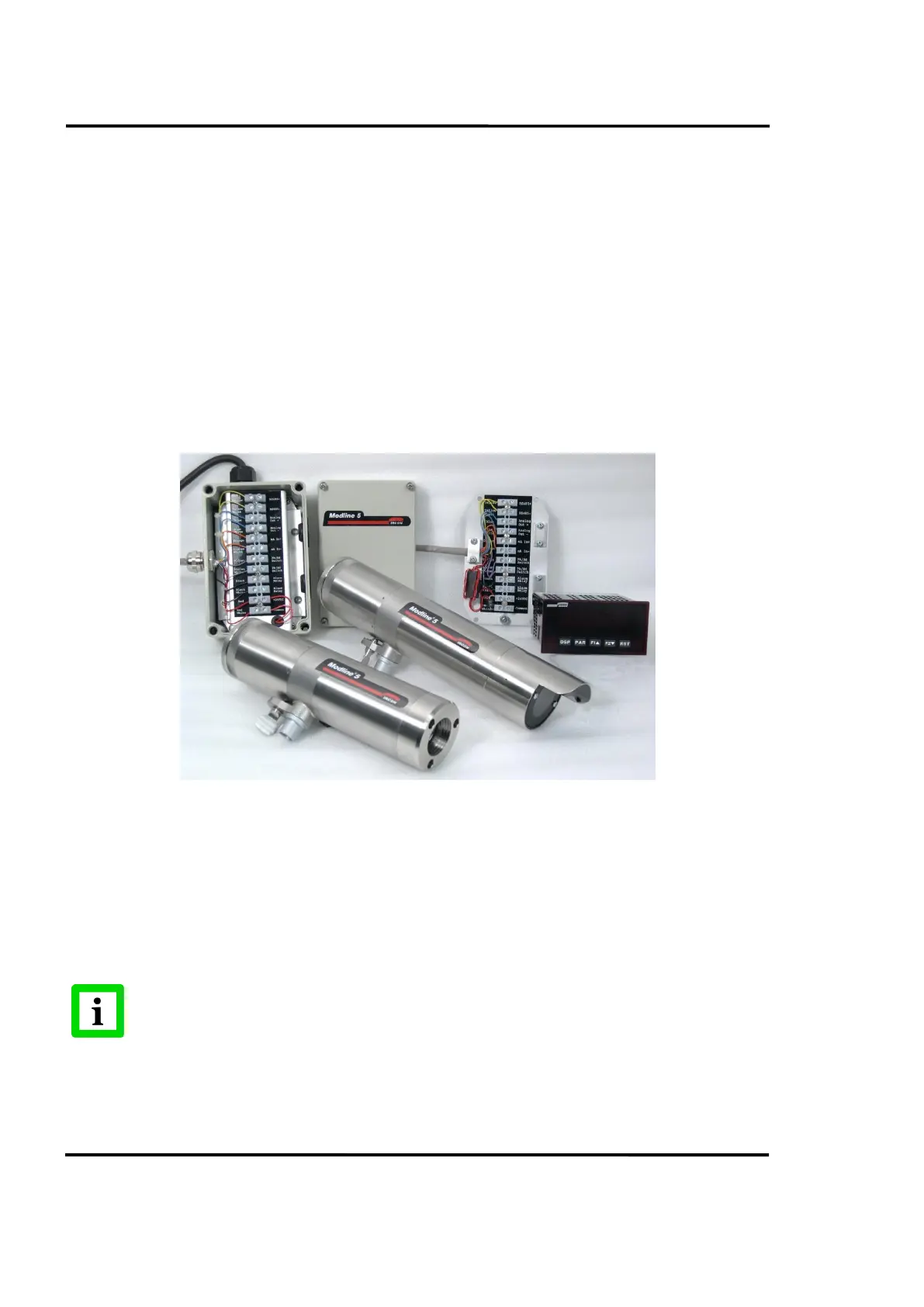

Figure 1: Sensors, Cable and Interface Accessories
Place all items on a workbench or desk before removing the plastic covers. Inspect each item carefully
to determine if any damage occurred in transit. If you find such damage, promptly inform the freight
agent delivering the components. Save the carton until you are sure you will have no further use for it.
Return items for repair in their original packaging. Contact Ircon before returning any products for
service. See the “Contacts” page at front of the manual on how to contact IRCON.
For Modline 56 sensors: occasionally, a calibration flag that operates during the Sensor
internal Calibrate test may move into the viewing area during shipment. If this occurs,
the viewing area will be dark and appear obstructed. This flag will be positioned
correctly when power is applied to the Sensor.
