ircon Modline 5 - Installation Drawing Using the WJA Water Jacket Accessory with the Base Mount Adapter

Sensor Installation
58
Rev. L6 Feb 2017 Modline 5

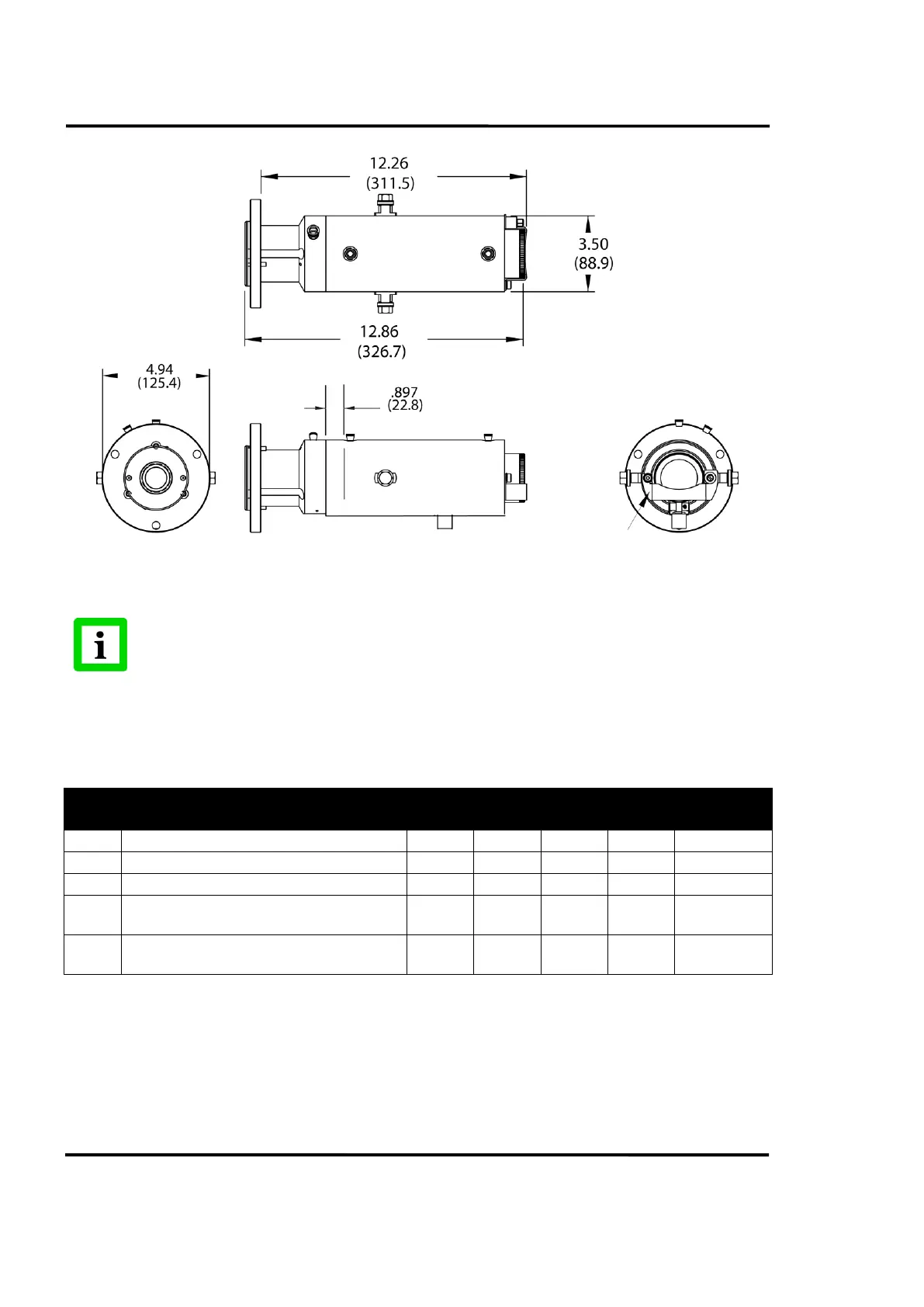

Figure 50: Group 13 shown WJA, APA and MFL Flange
Dimensions are in inches and (millimeters). Do not scale.
Total Lengths Dimension shown with and without MFL Flange.
Mechanical and optical Centerlines are coincidental.
3.11.4 Installation Drawing using the WJA Water Jacket Accessory with the Base
Mount Adapter
Group
Mounting Option
Required Accessories. See Individual
Accessory Descriptions and Dimensions.
DWD
See Notes
14
Water Jacket, Base Mount
WJA
BMA
N. R. (1)
15
Water Jacket, Base Mount, Air Purge
APA
WJA
BMA
Add ESA (2)
16
Water Jacket, Base Mount and Large Flange
WJA
BMA
MFL
Add ESA (3)
17
Water Jacket, Base Mount, Air Purge and
Small Flange
APA
WJA
BMA
MFS
Add ESA (2)
18
Water Jacket, Base Mount, Air Purge and
Large Flange
APA
WJA
BMA
MFL
Add ESA (2)
DWD is Dirty Window Detector Option. Refer to notes with grouping table in Section 3.10 Accessory Combinations with Break-out Drawings,
page 50. The ESA adds 1.82 in. (46.2 mm) to length of the assembled group.
Table 11: Recommended Accessory Groupings WJA with BMA
Front of Sensor without DWD with
Reference to WJA
Safety Clamp
Dia.
Dia.
