ircon Modline 5 - MFS - Mounting Flange Small Description and Dimensions

Sensor Installation
42
Rev. L6 Feb 2017 Modline 5

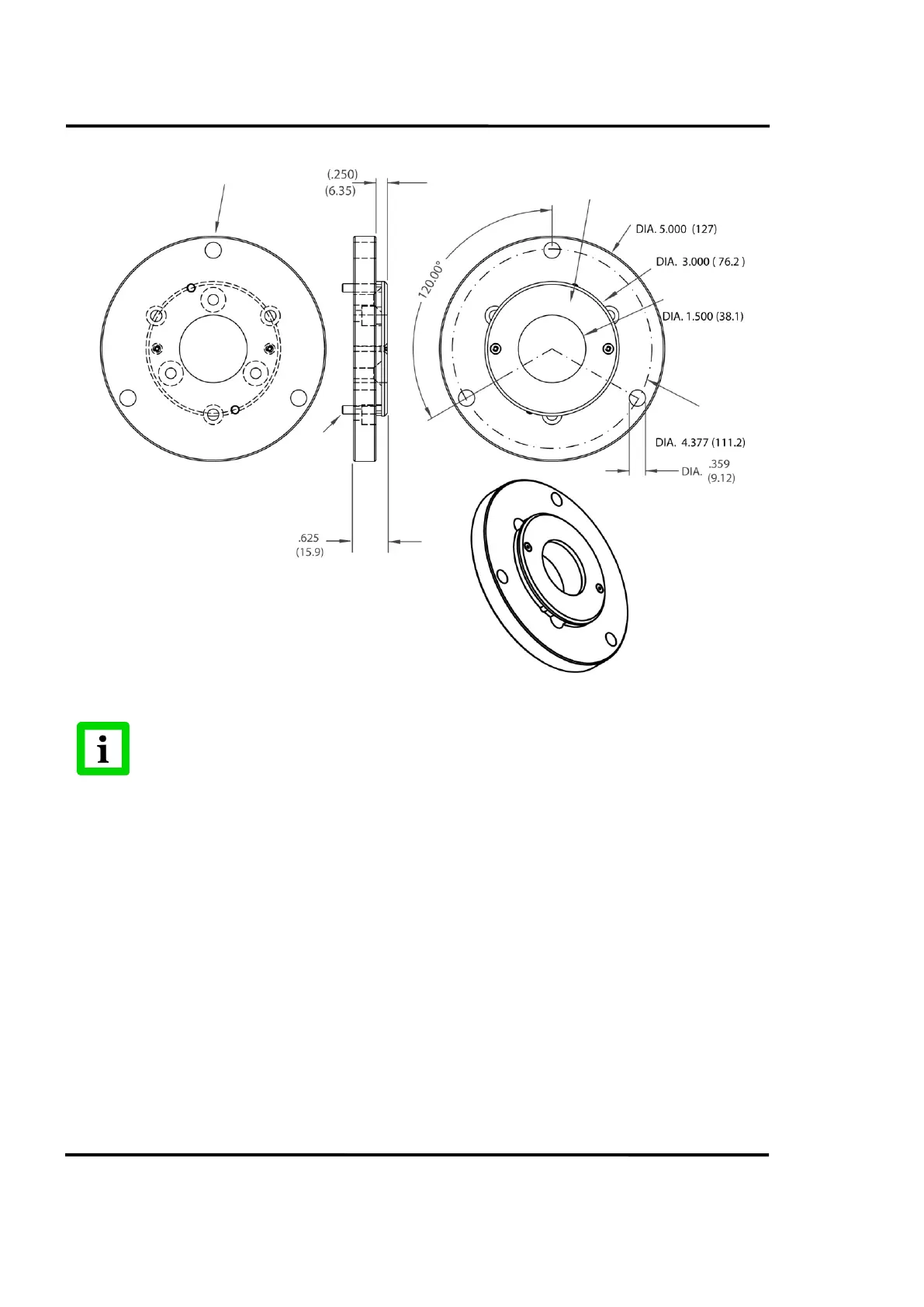

Figure 28: MFL Dimensions
Dimensions are in inches and (millimeters). Do not scale.
3.9.5 MFS – Mounting Flange Small Description and Dimensions
The MFS is a scaled down version of the MFL flange with a smaller diameter bolt circle pattern. This
flange provides strength in mounting with a smaller profile. This flange also provides a means of
mounting to accessories of other manufacturers.
The MFS is used by first bolting it to the APA air purge. In the photograph is shown the MFS mounted
to the APA.
Front
Other Accessory
interface side
Mounting Holes 3 Places
Remove Metal Cover Gasket to expose two
Groups of three trough Holes for attaching
Modline 5 Accessories
Outside
Back
Modline 5 Accessories
mount to this side
Gasket mount
Hole
Mounting bolt circle
Locating
PINs
2 Places
