ircon Modline 5 - RAM - Right Angle Mount Description and Dimensions

Sensor Installation
Modline 5
Rev. L6 Feb 2017 37
Qty
Part No.
Description and use
User Supplied Tools
1
230830C60
M8 X 30 mm socket head caps screw for sensor
clamping
6 mm hex key, long arm L style wrench
recommended
3
202520540
¼-20 x 5/8 inch (15.9 mm) stainless steel hex
head bolt
Adjustable wrench
3
222503200
Stainless steel split ring lock washer
3
260600060
Black oxide flat washer
Table 2: UAA Mounting and Assembly Supplied Parts List
3.9.2 RAM – Right Angle Mount Description and Dimensions
The RAM – Right Angle Mount provides convenience, strength and flexibility in mounting the Modline
5 Sensor. The UAA universal adapter is required to attach the Sensor to the RAM. Two holes and one
slot on the upright side of the mount are for mounting the Sensor and UAA. Use the slot and outer hole
to provide vertical angular adjustment of the Sensor’s optical axis. Use the two holes for fixed axis
mounting. Two holes and one slot for mounting are located in the base of the RAM. Use the slot and
outer hole to provide angular adjustment. Pivoting of the base provides horizontal angular adjustment.
Use just the two holes for fixed axis mounting.

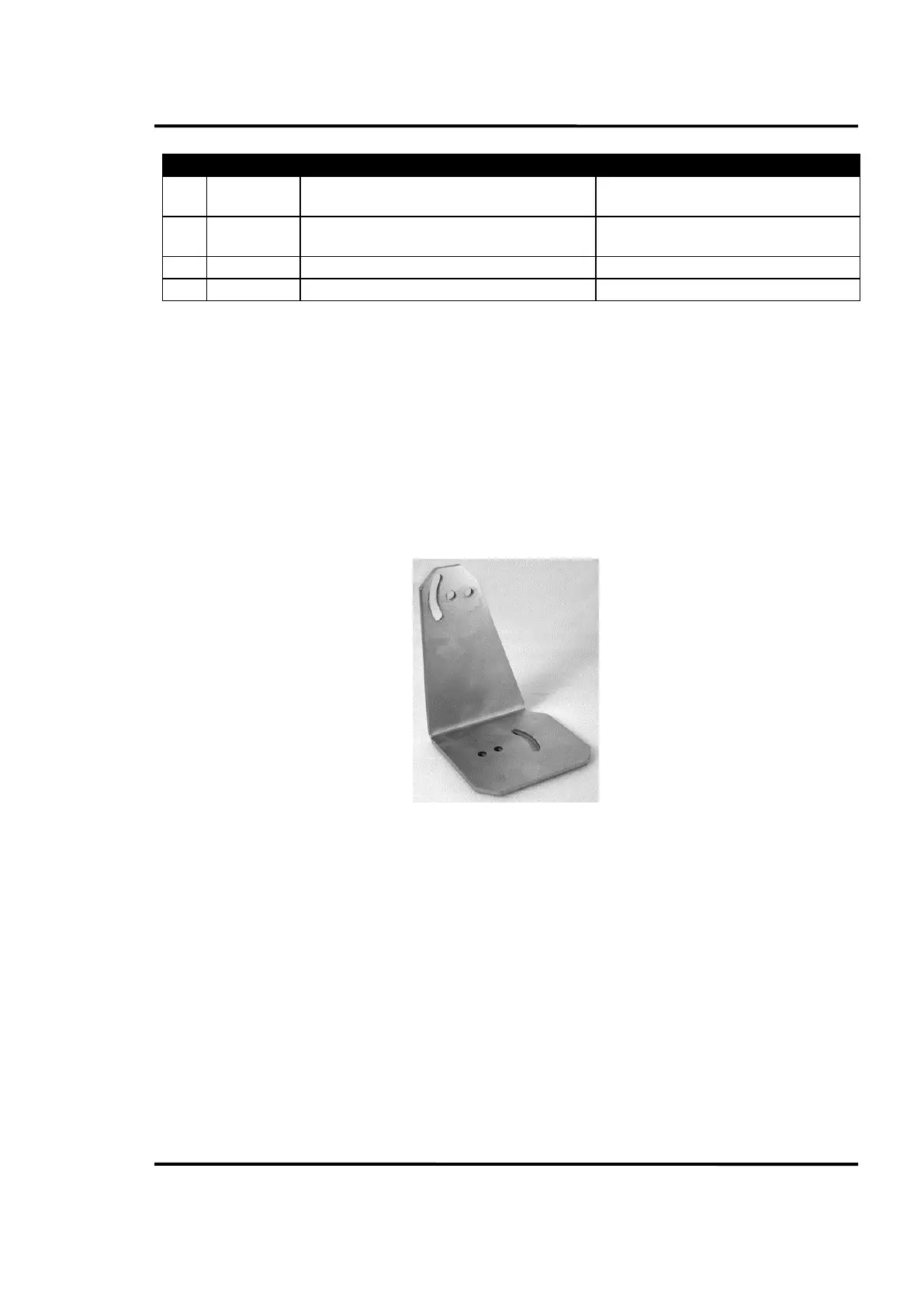

Figure 23 RAM Accessory
Material: Passivated Stainless Steel
Weight: Approximately 1.2 pounds (0.55 Kilogram)
Mounting and Assembly Supplied Parts List:
 No hardware is supplied with the RAM. UAA assembly hardware is supplied with the UAA.
 Two user supplied M6 or ¼-20 mounting bolts and washers are required to mount the base of
the bracket.
