Sensor Installation
36
Rev. L6 Feb 2017 Modline 5

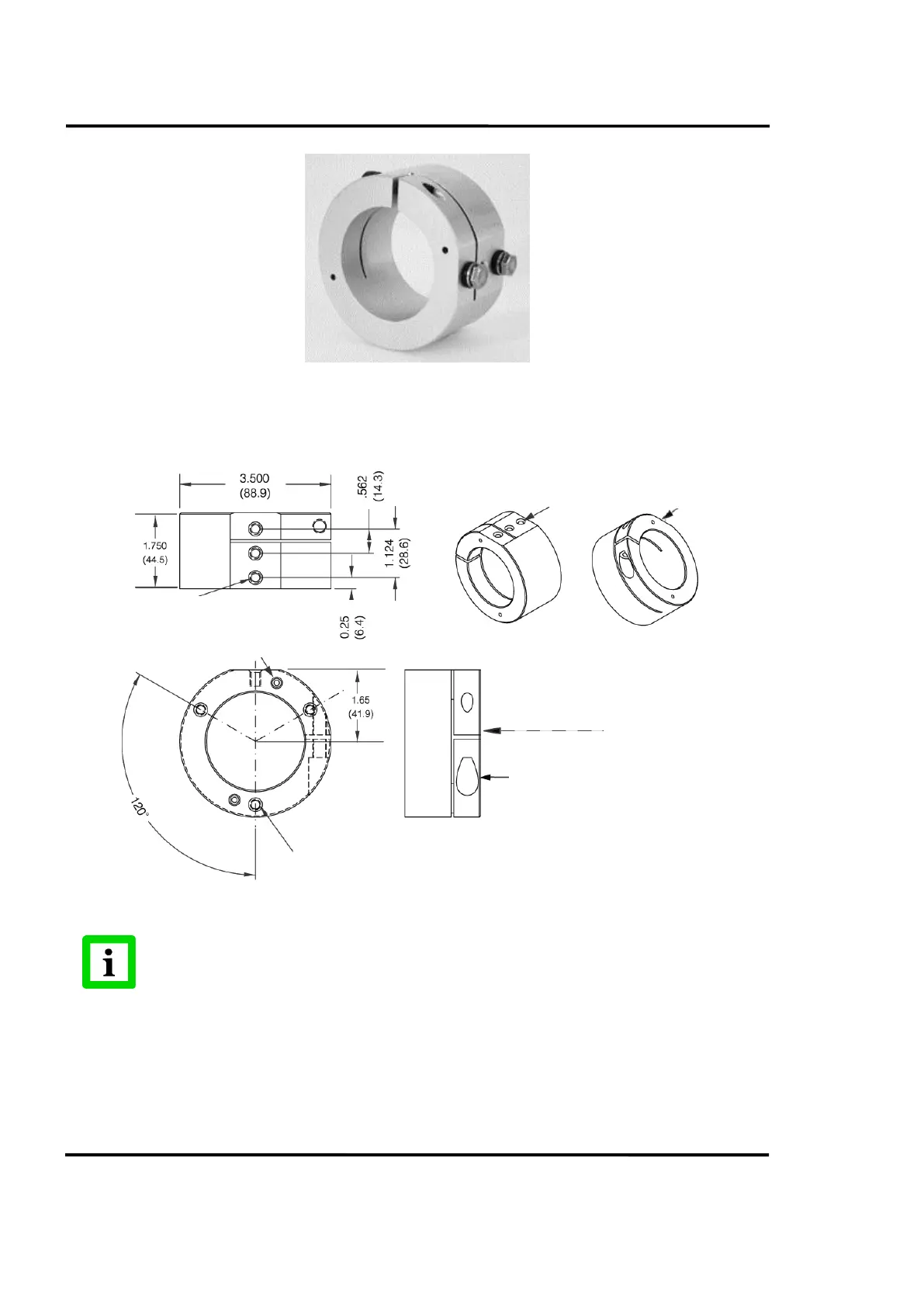

Figure 21: UAA Accessory
Material: Clear Anodized Aluminum
Weight: Approximately 1 Pound (0.5 kg)
Figure 22: UAA Dimensions
Dimensions are in inches and (millimeters). Do not scale.
3 hex Head Screws and
washers supplied
¼ - 20 threaded X.375 (9.5)
deep 3 places
Orientation Holes 2 places
Insert Front of Sensor this Direction
M8 X 30 mm Socket Head Cap Screw
Supplied for clamping Sensor
M6 X 25 mm deep threaded Holes for
IRCON Accessories
3 Places
Flat mounting Surface
Align with other Asccessoiries
