ircon Modline 5 - Installation Drawing Using the WJA - Water Jacket Accessory with Flange Mounts

Sensor Installation
Modline 5
Rev. L6 Feb 2017 57
3.11.3 Installation Drawing using the WJA – Water Jacket Accessory with
Flange Mounts
Group
Mounting Option
Required Accessories. See Individual
Accessory Descriptions and Dimensions.
DWD
See Notes
11
Water Jacket, Air Purge and Small Flange
APA
WJA
MFS
Add ESA (2)
12
Water Jacket with Large Flange Mount
WJA
MFL
Add ESA (3)
13
Water Jacket, Air Purge and Large Flange
APA
WJA
MFL
ESA (2)
DWD is Dirty Window Detector Option. Refer to notes with grouping table in Section 3.10 Accessory Combinations with Break-
out Drawings, page 50. The ESA adds 1.82 in. (46.2 mm) to length of the assembled group.
Table 10: Recommended Accessory Groupings WJA with Flange Mounts

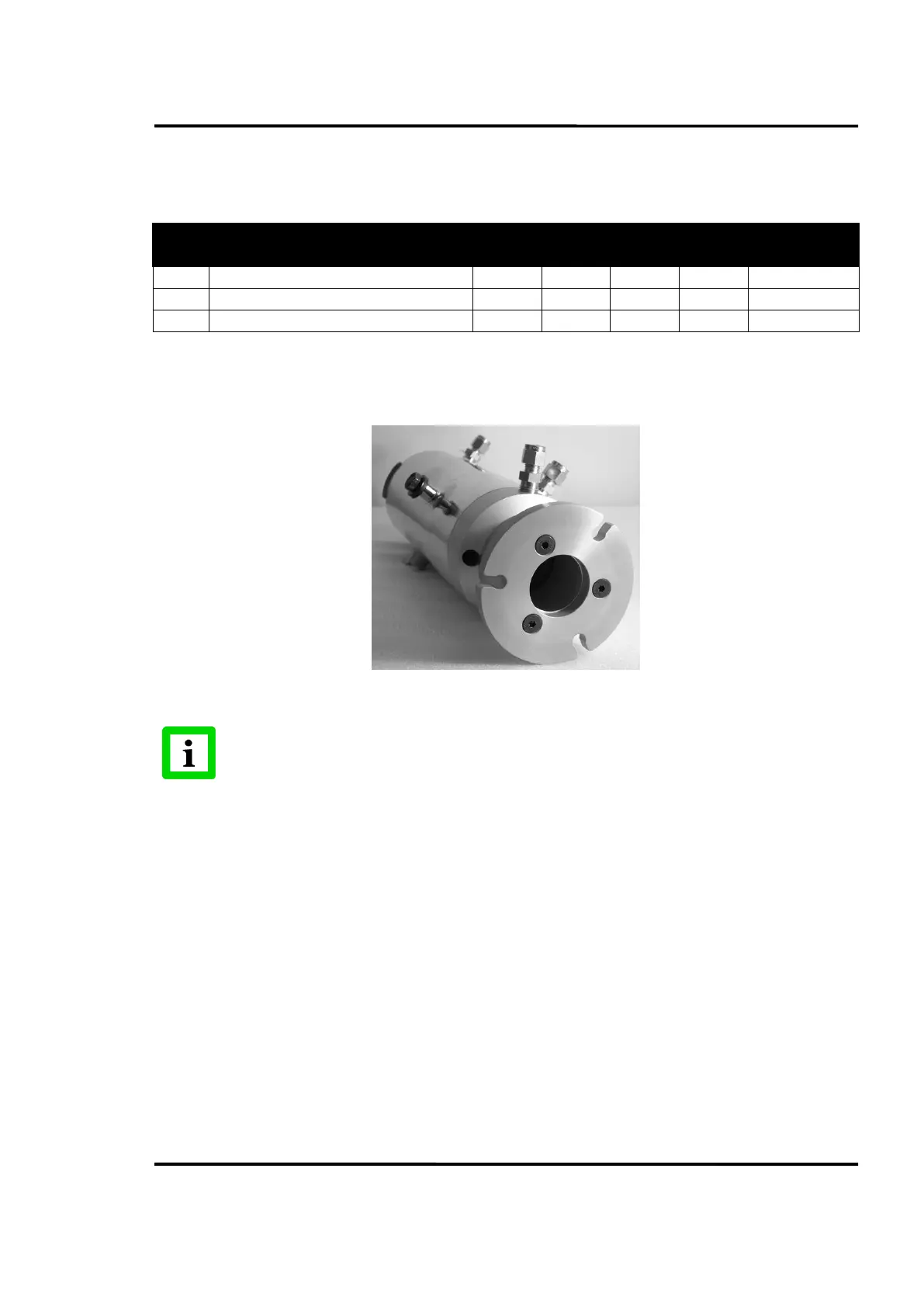

Figure 49WJA with Flange Mounts
Insert Sensor into the WJA assembly with moderate force until it “snaps” into the
spring catch. Secure the Sensor rear protection and sighting window. Swing safety
clamp into position and tighten.
